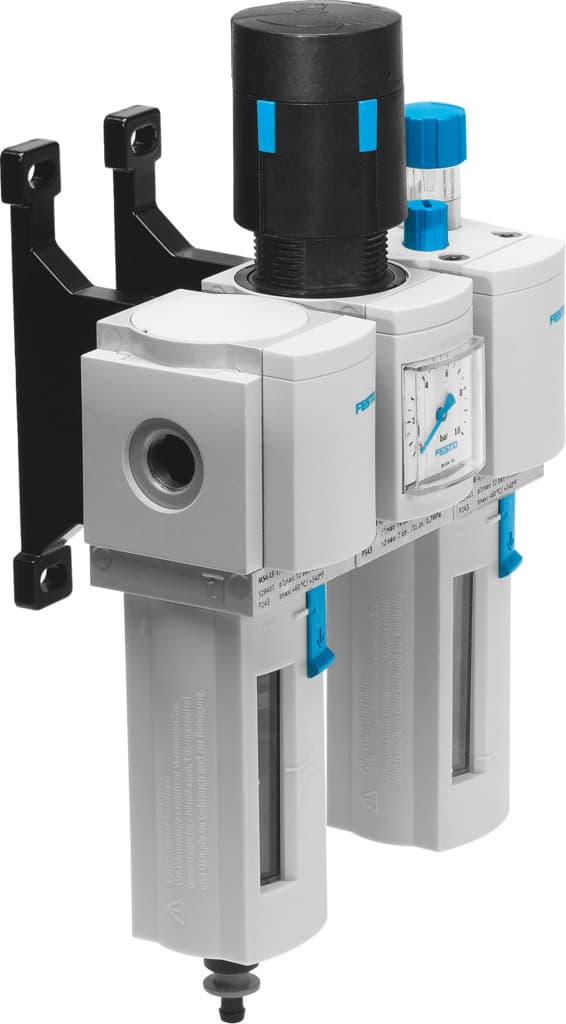

msb4n-1/4:h2n3m1-wp
Product ID:10686
Updated: 2026/7/4
Key Features
- 1Ensure clean air with 40μm filtration for reliable processes.
- 2Control pressure precisely with the integrated regulator.
- 3Extend component life via the built-in lubrication system.
- 4Integrate easily with versatile mounting for automation.
- 5Minimize downtime with Festo's proven quality and durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Filter regulator with pressure gauge Proportional standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991761 |
| Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 14bar |
| Pressure regulation range | 1bar 12bar | Standard nominal flow rate | 800l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 1000g |
| Type of mounting | With accessories | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT | Housing material | Die-cast aluminum |
| Material of bowl | PC | Manufacturer ID | 541432 |
Specifications may be subject to change without notice
