msb4n-1/4:j2d1a1-wp
Product ID:10691
Updated: 2026/4/3
Key Features
- 1Ensure consistent air pressure and high purity. 2、Filter out oil, water, and dirt particles effectively. 3、Integrate easily into diverse industrial automation setups. 4、Reduce maintenance costs with robust, long-lasting construction. 5、Guarantee compatibility within the Festo pneumatic ecosystem.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Fully automatic |

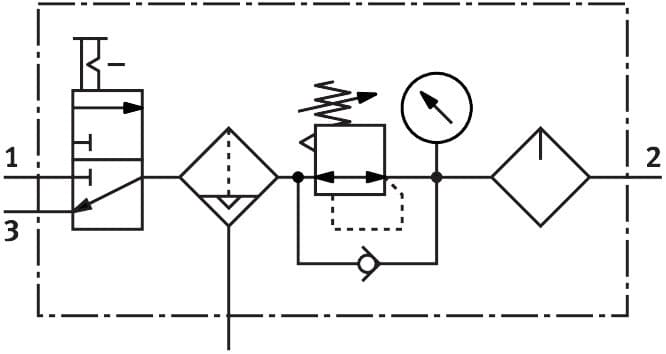

| Structural design | Shut off valve Filter regulator with pressure gauge Standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991596 |
| Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 12bar |
| Pressure regulation range | 4bar 12bar | Standard nominal flow rate | 750l/min |
| Coil characteristics | 24 V DC: 1.5 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | 5°C 60°C | Ambient temperature | 5°C 60°C |
| Product weight | 1600g | Type of mounting | With accessories |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
| Pneumatic connection 3 | G1/4 | Housing material | Die-cast aluminum |
| Material of bowl | PC | Manufacturer ID | 541437 |
Specifications may be subject to change without notice
