msb4n-1/4:j3d1a1-wp
Product ID:10693
Updated: 2026/4/3
Key Features
- 1Ensure high-quality compressed air by filtering out oil, condensate, and dirt particles. 2、Maintain consistent pressure and cleanliness with an integrated regulator and filter unit. 3、Integrate easily into systems using Festo's standardized Core Range dimensions. 4、Operate reliably in demanding environments for a long service life. 5、Simplify installation and maintenance with a user-friendly configuration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 5μm | Condensate drain | Manually rotating |

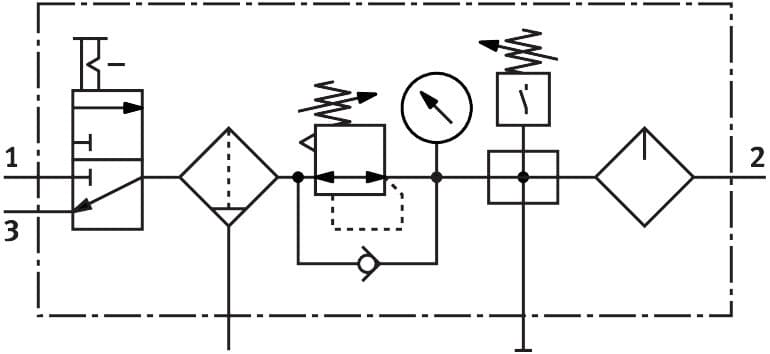

| Structural design | Branching module Shut off valve Filter regulator with pressure gauge Standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991597 |
| Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 14bar |
| Pressure regulation range | 4bar 12bar | Standard nominal flow rate | 700l/min |
| Coil characteristics | 24 V DC: 1.5 W | Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 1700g | Type of mounting | With accessories |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
| Pneumatic connection 3 | G1/4 | Housing material | Die-cast aluminum |
| Material of bowl | PC | Manufacturer ID | 541439 |
Specifications may be subject to change without notice
