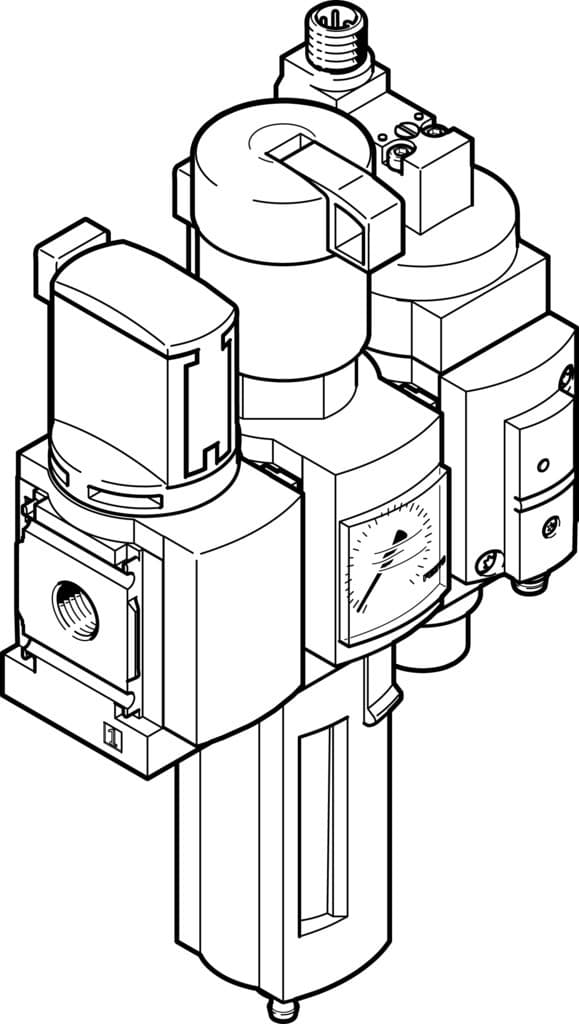

msb6-1/2:c3:j120:d14-wp
Product ID:16011
Updated: 2026/7/15
Key Features
- 1Ensure clean compressed air with 40 μm filtration.
- 2Control pressure precisely from 0.8 to 18 bar.
- 3Maintain constant output with primary pressure compensation.
- 4Rely on durable RoHS-compliant aluminum housing.
- 5Operate reliably from -10°C to 60°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00995364 |
| Pressure gauge | with pressure gauge | Operating pressure | 4bar 18bar |
| Pressure regulation range | 4bar 7bar | Standard nominal flow rate | 4400l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | 0°C 50°C |
| Ambient temperature | 0°C 50°C | Product weight | 2000g |
| Type of mounting | With accessories | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1/2 |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Material of bowl | PC | Manufacturer ID | 8042670 |
Specifications may be subject to change without notice
