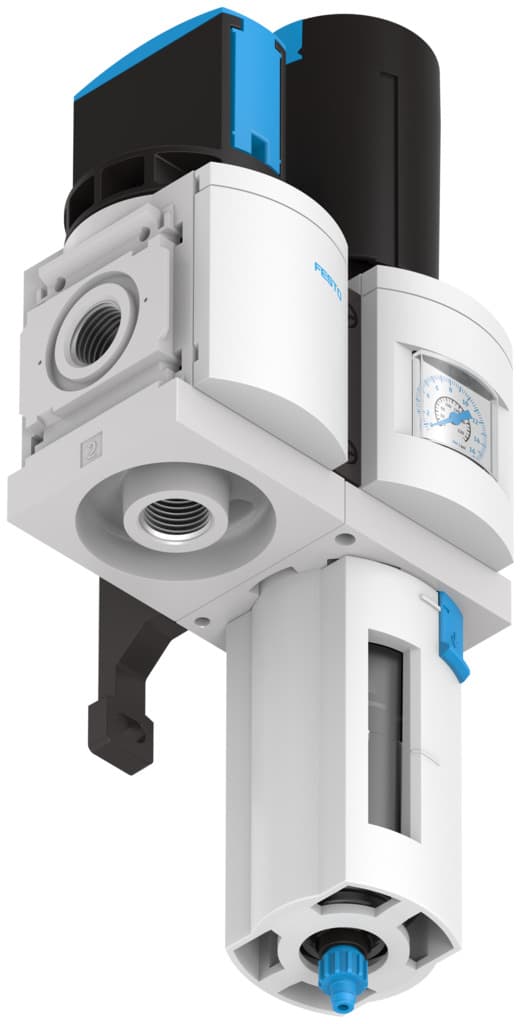

msb6-1/2:c3j3-wp
Product ID:10787
Updated: 2026/4/3
Key Features
- 1Provide 5 µm filtration for clean, reliable compressed air. 2、Regulate pressure across a wide 0.5 to 12 bar operating range. 3、Remove condensate easily with the manual rotary drain feature. 4、Install flexibly with vertical +/- 5° angle adjustment capability. 5、Ensure durability with an aluminum housing and RoHS compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 5μm | Condensate drain | Manually rotating |
| Structural design | Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991755 |
| Pressure gauge | with pressure gauge | Operating pressure | 0.8bar 18bar |
| Pressure regulation range | 0.5bar 12bar | Standard nominal flow rate | 4800l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 1100g |
| Type of mounting | With accessories | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1/2 |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Material of bowl | PC | Manufacturer ID | 542280 |
Specifications may be subject to change without notice
