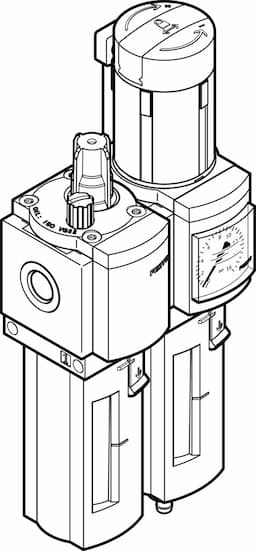

msb6-1/2-frc5:j1m1-z
Product ID:9287
Updated: 2026/4/3
Key Features
- 1Filter out compressor oil, condensate, and dirt particles. 2、Customize with pressure regulators and various filters. 3、Rely on Festo's quality for durable, reliable performance. 4、Simplify installation with standardized dimensions and interfaces. 5、Access exclusive Festo partner training and support.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
| Condensate drain | Manually rotating | Structural design | Filter regulator with pressure gauge Proportional standard oil mist lubricator |
| Grade of filtration | 40μm | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991761 |
| Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 20bar |
| Pressure regulation range | 0.5bar 12bar | Standard nominal flow rate | 3700l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 1495g |
| Type of mounting | With accessories | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Note on materials | RoHS-compliant |
| Manufacturer ID | 530245 |
Specifications may be subject to change without notice
