msb6-1/2:j1d1a1-wp
Product ID:9280
Updated: 2026/7/4
Key Features
- 1Integrate filtration, regulation, and lubrication in one compact unit.
- 2Precisely control pressure with a 0.5 to 12 bar regulation range.
- 3Ensure system reliability with manual or automatic condensate drain options.
- 4Simplify installation using standardized G1/2 connections and mounting brackets.
- 5Protect equipment with robust 40 μm filtration for clean, contaminant-free air.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |

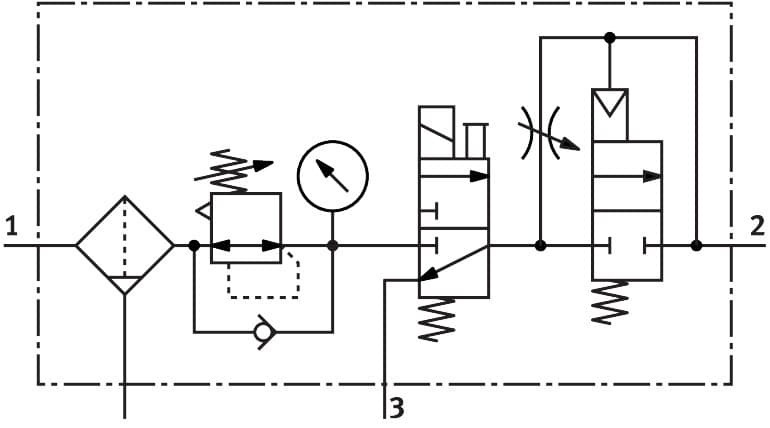

| Structural design | Soft start valve Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991766 |
| Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 18bar |
| Pressure regulation range | 4bar 12bar | Standard nominal flow rate | 3100l/min |
| Coil characteristics | 24 V DC: 1.5 W | Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 2400g | Type of mounting | With accessories |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Material of bowl | PC |
| Manufacturer ID | 530222 |
Specifications may be subject to change without notice
