msb6-1/2:j2d1a1-wp
Product ID:9281
Updated: 2026/4/3
Key Features
- 1Filter oil, condensate, and dirt for ISO 8573-1:2010 air quality. 2、Control pressure easily with a manual rotary knob and detent. 3、Protect components with the included plastic bowl guard. 4、Integrate seamlessly into existing Festo pneumatic systems. 5、Reduce downtime with reliable performance across industrial applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Fully automatic |

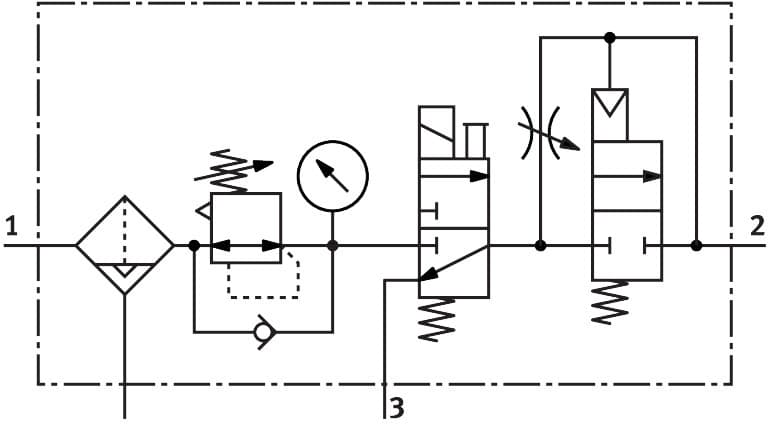

| Structural design | Soft start valve Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991767 |
| Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 12bar |
| Pressure regulation range | 4bar 12bar | Standard nominal flow rate | 3100l/min |
| Coil characteristics | 24 V DC: 1.5 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | 5°C 60°C | Ambient temperature | 5°C 60°C |
| Product weight | 2400g | Type of mounting | With accessories |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Material of bowl | PC |
| Manufacturer ID | 530224 |
Specifications may be subject to change without notice
