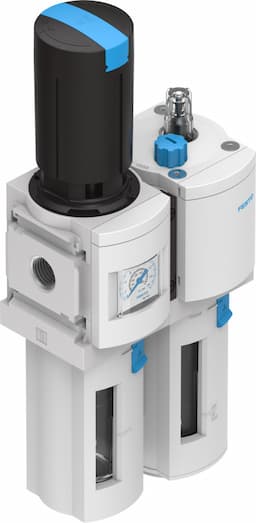

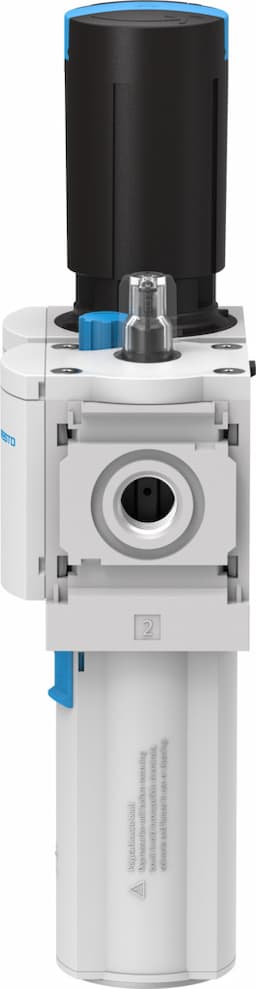

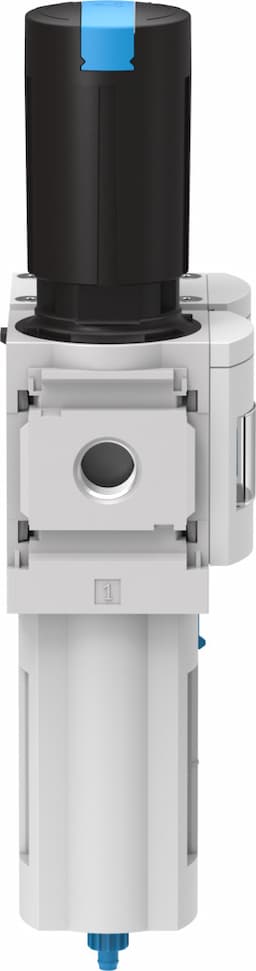

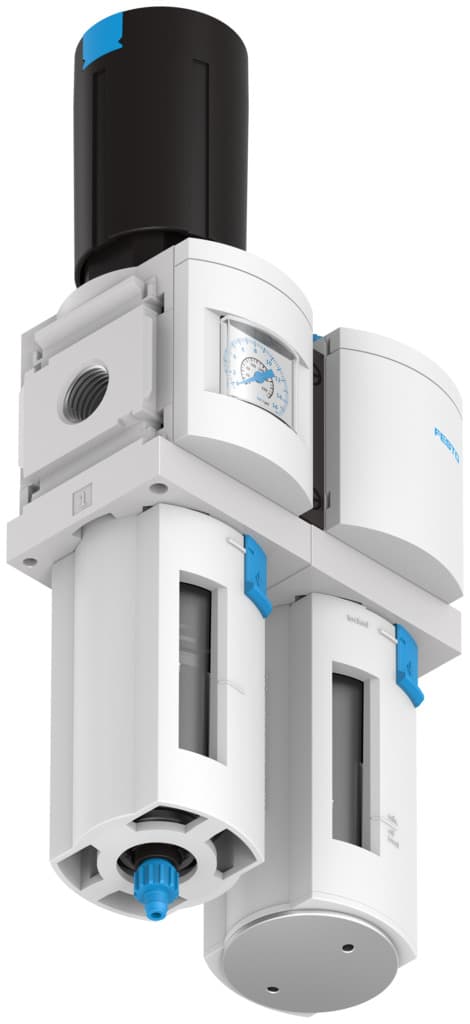

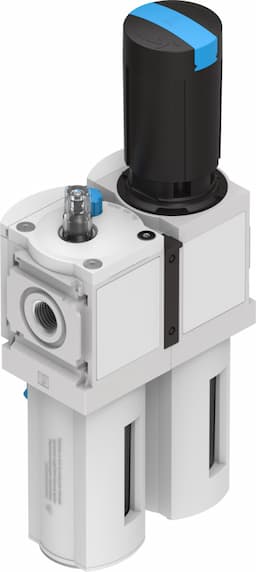

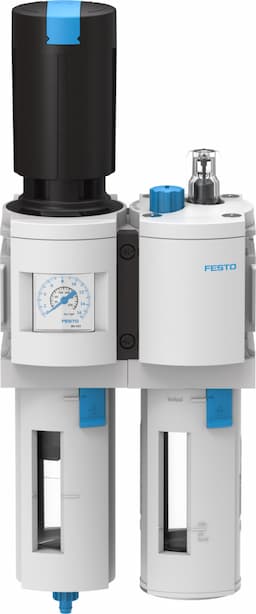

msb6-3/8-frc5:j1m1
Product ID:9292
Updated: 2026/7/4
Key Features
- 1Filter out condensate, oil, and dirt for optimal air quality.
- 2Operate easily with a rotary knob featuring an integrated lock.
- 3Mount vertically with +/-5° angle adjustment for flexible installation.
- 4Maintain consistent air pressure using advanced FRL technology.
- 5Ensure long service life with a robust design and high-quality components.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
| Condensate drain | Manually rotating | Structural design | Filter regulator with pressure gauge Proportional standard oil mist lubricator |
| Grade of filtration | 40μm | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991761 |
| Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 20bar |
| Pressure regulation range | 0.5bar 12bar | Standard nominal flow rate | 3500l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 1495g |
| Type of mounting | With accessories | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 | Note on materials | RoHS-compliant |
| Manufacturer ID | 530292 |
Specifications may be subject to change without notice
