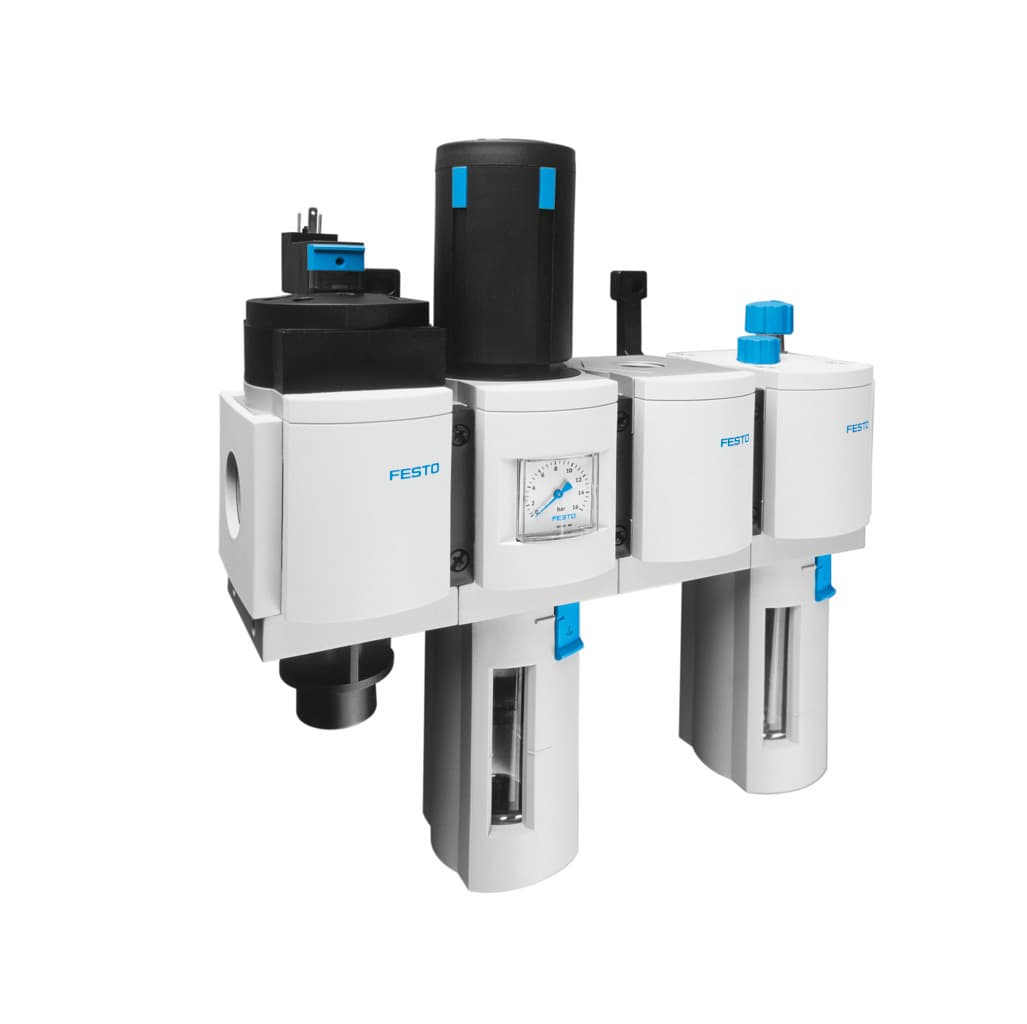

msb6n
Product ID:9535
Updated: 2026/4/3
Key Features
- 1Provide a complete compressed air system with filter regulators and lubricators. 2、Ensure high air purity with a 40 µm filtration grade. 3、Feature a fully automatic condensate drain for efficient operation. 4、Offer versatile mounting options and internal thread support. 5、Deliver moderate corrosion resistance for normal industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuation type | Electrical Manual Pneumatic | Actuator lock | Rotary knob with integrated lock |
| Mounting position | Vertical +/- 5° | Grade of filtration | 0.01μm 40μm |
| Structural design | Branching module Active carbon filter Pressure regulator with pressure gauge Soft start/quick exhaust valve Soft start valve Air flow sensor Shut off valve Fiber filter Filter regulator with pressure gauge Filter regulator without pressure gauge Membrane dryer Proportional standard oil mist lubricator Sinter filter with centrifugal separator Water trap Electrically adjustable pressure regulator Pilot-controlled precision diaphragm regulator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard Integrated as metal bowl guard | Differential pressure display | Visual display With pressure sensor |
| Pressure gauge | with pressure sensor with pressure gauge | Operating pressure | 1.5bar 20bar |
| Pressure regulation range | 0.3bar 12bar | Standard nominal flow rate | 1700l/min 4800l/min |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 24 V DC: 1.5 W 24 V DC: 1.8 W | Certification | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
| Certificate issuing authority | Intertek UK-MCR-0086 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Type of mounting | With accessories |
| Housing material | Die-cast aluminum | Material of bowl | PC |
| Manufacturer ID | 532307 |
Specifications may be subject to change without notice
