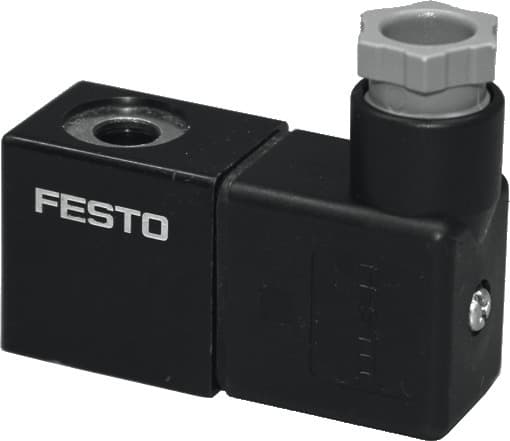

msfg-12
Product ID:8501
Updated: 2026/7/4
Key Features
- 1Achieve fast 10 ms pick-up time for efficient cycle performance.
- 2Operate continuously with a robust 100% duty cycle rating.
- 3Conserve energy using a low 4.1W power consumption at 12V DC.
- 4Withstand harsh conditions with IP65 protection and a wide temperature range.
- 5Simplify installation with a standard 3-pin plug for secure Festo MSSD-F mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Switching position indication | no |
| Min. pick-up time | 10ms | Duty cycle | 100% |
| Coil characteristics | 12 V DC: 4.1 W | Permissible voltage fluctuations | +/- 10 % |
| LABS (PWIS) conformity | VDMA24364-C1-L | Degree of protection | IP65 |
| Ambient temperature | -5°C 40°C | Max. tightening torque of socket | 0.4Nm |
| Product weight | 55g | Electrical connection | 3-pin Plug flags with connection diagram as per Festo standard for MSSD-F |
| Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
| Solenoid coil material | Duroplast Copper Steel | Material of winding | Copper |
| Manufacturer ID | 4526 |
Specifications may be subject to change without notice
