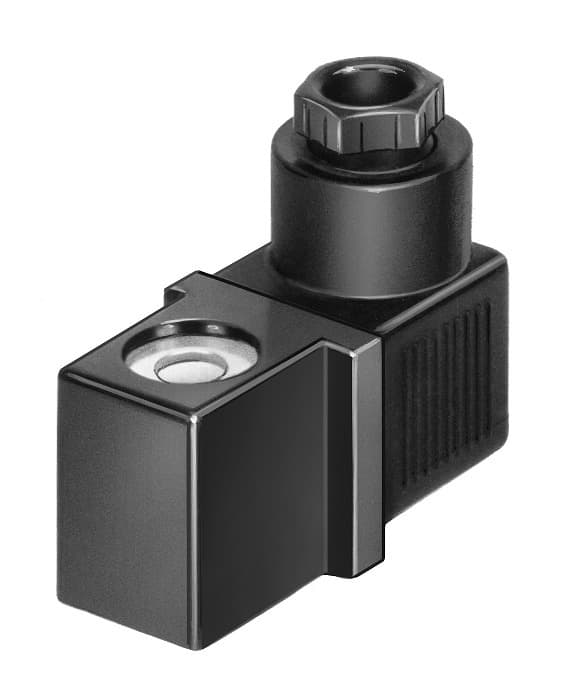

msfw-230-50/60-ds
Product ID:1219
Updated: 2026/4/3
Key Features
- 1Operate with a 0.7 power factor for high system efficiency. 2、Achieve reliable switching with a 10 ms minimum pick-up time. 3、Utilize 100% duty cycle for continuous operation without overheating. 4、Mount flexibly with optional positions via a knurled nut. 5、Connect easily using the industry-standard type B plug connector.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Switching position indication | no |
| Min. pick-up time | 10ms | Duty cycle | 100% |
| Power factor cos {phi} | 0.7 | Coil characteristics | 230 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA |
| Permissible frequency fluctuations | +/- 5% | Permissible voltage fluctuations | +/- 10 % |
| Maritime classification | See certificate | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Certificate issuing authority | DNV-TAA000032X |
| LABS (PWIS) conformity | VDMA24364-C1-L | Degree of protection | IP65 |
| Ambient temperature | -5°C 40°C | Max. tightening torque of socket | 0.4Nm |
| Product weight | 55g | Electrical connection | Form A as per DIN EN 175301-803 |
| Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
| Solenoid coil material | Duroplast Copper Steel | Material of winding | Copper |
| Manufacturer ID | 13266 |
Specifications may be subject to change without notice
