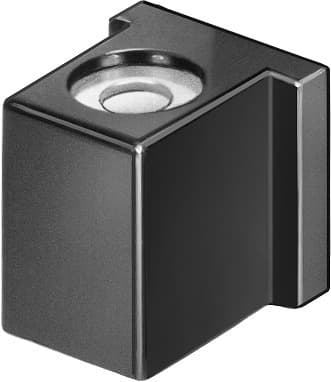

msfw-230-50/60-ds-od
Product ID:5383
Updated: 2026/7/4
Key Features
- 1Operate at 230V AC for wide industrial application compatibility.
- 2Consume only 4.1 W for energy-efficient and cost-effective automation.
- 3Ensure consistent performance with a 100% duty cycle under various conditions.
- 4Feature a durable steel housing and copper winding for harsh environment reliability.
- 5Allow 180° plug repositioning for straightforward installation and maintenance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Switching position indication | no |
| Min. pick-up time | 10ms | Duty cycle | 100% |
| Power factor cos {phi} | 0.7 | Coil characteristics | 230 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA |
| Permissible frequency fluctuations | +/- 5% | Permissible voltage fluctuations | +/- 10 % |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Degree of protection | IP65 |
| Ambient temperature | -5°C 40°C | Max. tightening torque of socket | 0.4Nm |
| Product weight | 55g | Electrical connection | Form A as per DIN EN 175301-803 |
| Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
| Solenoid coil material | Duroplast Copper Steel | Material of winding | Copper |
| Manufacturer ID | 175118 |
Specifications may be subject to change without notice
