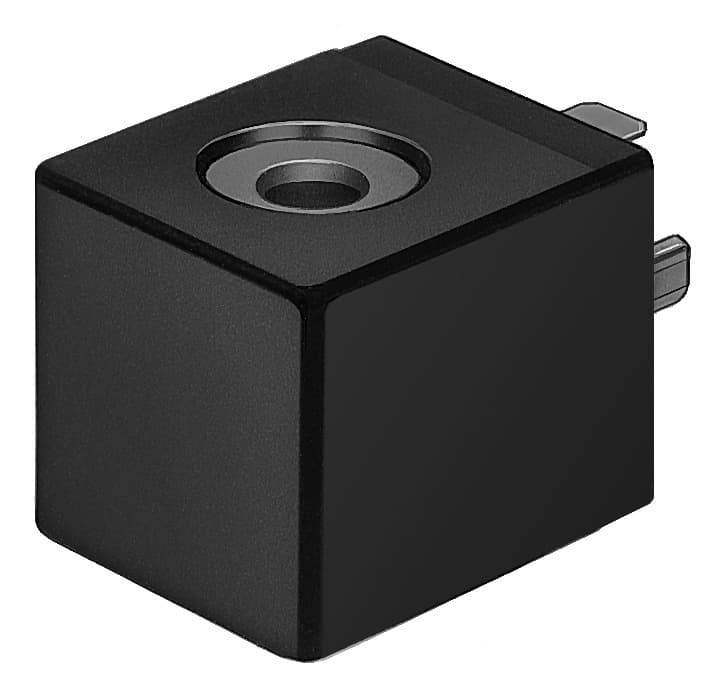

msn1w-110ac-od
Product ID:857
Updated: 2026/7/4
Key Features
- 1Achieve a high 0.7 power factor for efficient operation.
- 2Ensure compatibility with 110V AC at 50/60 Hz systems.
- 3Benefit from a fast 10 ms minimum pick-up time.
- 4Rely on durable, PTFE-free construction for longevity.
- 5Withstand harsh conditions with an IP65 protection rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Min. pick-up time | 10ms |
| Duty cycle | 100% | Power factor cos {phi} | 0.7 |
| Coil characteristics | 110 V AC: 50 Hz, initial power 7.5 VA, holding power 5.0 VA 110 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA 120 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA | Permissible voltage fluctuations | at 50Hz ±10% at 60Hz -10...+20% |
| Maritime classification | See certificate | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Certificate issuing authority | DNV-TAA000032X |
| LABS (PWIS) conformity | VDMA24364-C1-L | Temperature of medium | -10°C 50°C |
| Degree of protection | IP65 | Ambient temperature | -10°C 50°C |
| Product weight | 80g | Electrical connection | 3-pin Form A as per DIN EN 175301-803 |
| Type of mounting | Clamped With retaining clamp With accessories | Housing material | PA |
| Material of pin contacts | Steel | Material of winding | Copper |
| Manufacturer ID | 123061 |
Specifications may be subject to change without notice
