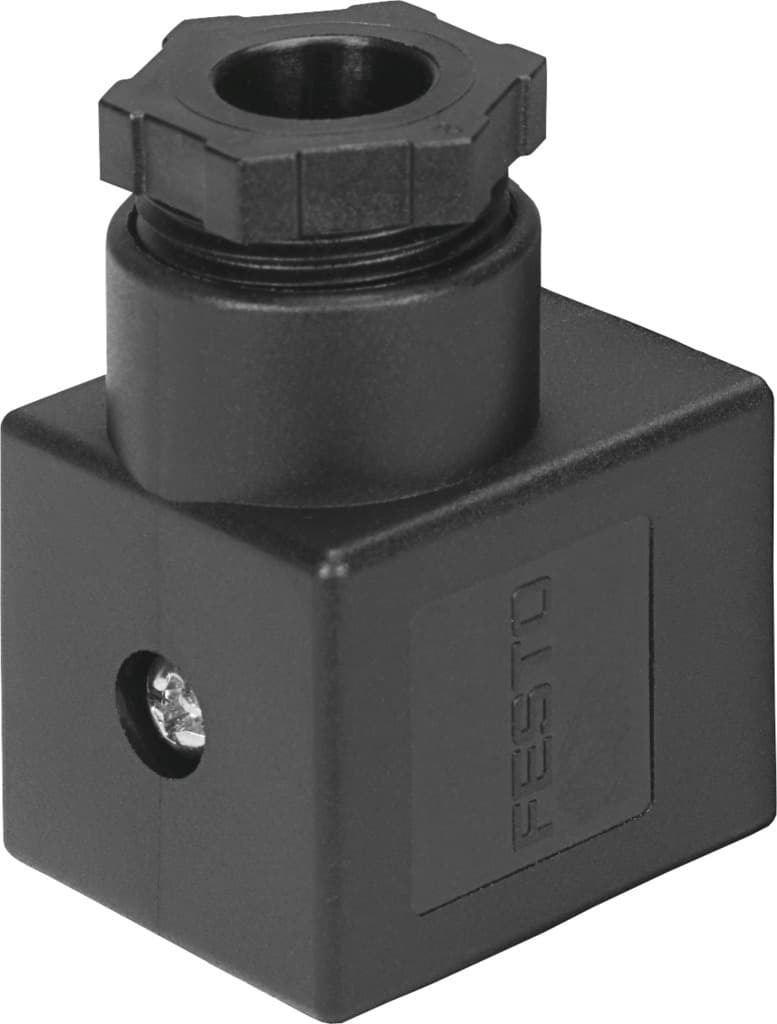

mssd-c
Product ID:8225
Updated: 2026/7/4
Key Features
- 1Ensure reliable valve connections with the IP65-rated MSSD-C plug socket.
- 2Meet maritime and industrial safety standards with certified components.
- 3Simplify installation using the angled cable outlet in tight spaces.
- 4Protect against dust and water ingress in harsh operating conditions.
- 5Comply with EU Low Voltage and UK RoHS environmental directives.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Maritime classification | See certificate | Type of mounting | On air solenoid valve with M3 central screw |
| Cable outlet | Angled | Note on cable outlet | Can be rotated through 90° |
| Mounting position | Any | Product weight | 22g |
| Electrical connection | 3-pin Socket, angled Form A as per DIN EN 175301-803 Rectangular design MSC Rectangular design MSN1 | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, number of pins/wires | 3 | Electrical connection for input 1, connection pattern | 00995648 |
| Electrical connection 2 | Screw terminal | DC operating voltage range | 0V 300V |
| Operating voltage range AC | 0V 250V | Current rating at 40° C | 16A |
| Protective earth connection | Available | Cable fitting | Pg9 |
| Cable diameter | 6mm 8mm | Nominal conductor cross section | 1.5mm2 |
| Degree of protection | IP65 | Note on degree of protection | In mounted state |
| Ambient temperature | -25°C 90°C | Storage temperature | -40°C 90°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Housing material | Polymer |
| Housing colour | Black | Seals material | NBR |
| Manufacturer ID | 34583 |
Specifications may be subject to change without notice
