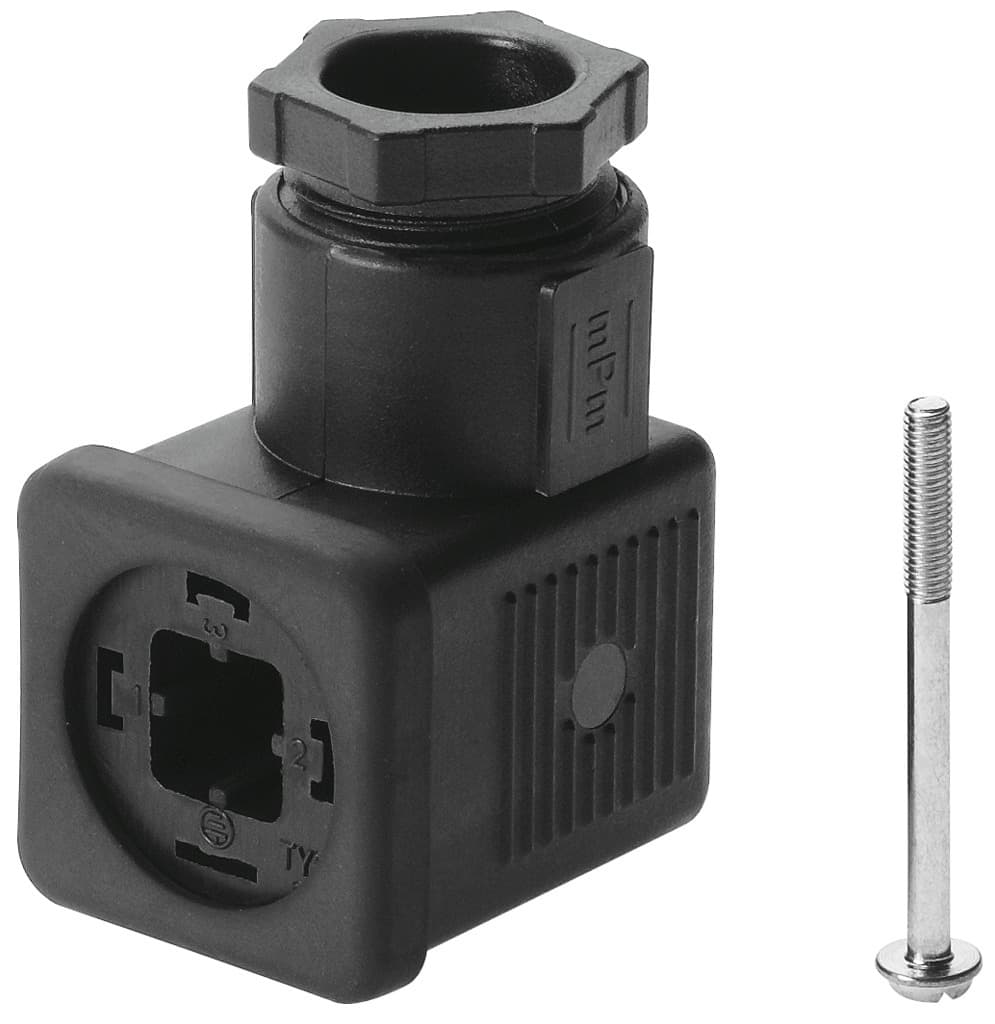

mssd-c-4p
Product ID:5127
Updated: 2026/7/4
Key Features
- 1Ensure secure electrical connections with a reliable 3-pin angled socket.
- 2Withstand harsh conditions using an IP65-rated protective housing.
- 3Mount easily on solenoid valves via a central M3 screw.
- 4Operate reliably across a wide -25°C to 90°C temperature range.
- 5Meet industry standards with DIN EN 175301-803 and RoHS compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | On air solenoid valve with M3 central screw | Mounting position | Any |
| Product weight | 22g | Electrical connection | 3-pin Socket, angled Form A as per DIN EN 175301-803 Rectangular design MSC Rectangular design MSN1 |
| Cable fitting | Pg9 | Cable diameter | 6mm 8mm |
| Nominal conductor cross section | 1.5mm2 | Degree of protection | IP65 |
| Ambient temperature | -25°C 90°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Housing material | Polymer |
| Housing colour | Black | Manufacturer ID | 171157 |
Specifications may be subject to change without notice
