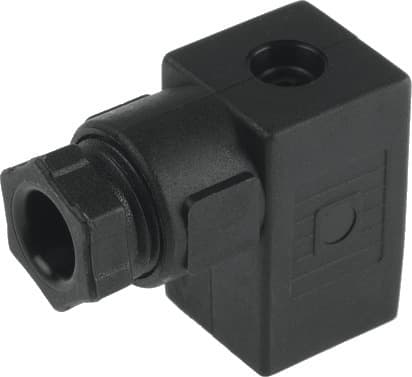

mssd-e
Product ID:1595
Updated: 2026/7/4
Key Features
- 1Ensure secure electrical connections for solenoid valves in industrial settings.
- 2Mount flexibly on any air solenoid valve using an M3 central screw.
- 3Handle high power with a 6 A current rating at 40°C.
- 4Resist harsh conditions with durable PA-reinforced material construction.
- 5Protect against dust and water with a robust IP65 rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | On air solenoid valve with M3 central screw | Mounting position | Any |
| Product weight | 8g | Electrical connection 1 | Angled socket, rectangular design, 3-pin, form C |
| Electrical connection 2 | Screw terminal | DC operating voltage range | 0V 300V |
| Operating voltage range AC | 0V 250V | Current rating at 40° C | 6A |
| Cable fitting | Pg7 | Cable diameter | 6mm 8mm |
| Connection cross section | 0.75mm2 | Degree of protection | IP65 |
| Ambient temperature | -25°C 90°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Contamination level | 3 | Housing material | PA-reinforced |
| Housing colour | Black | Seals material | NBR |
| Manufacturer ID | 14098 |
Specifications may be subject to change without notice
