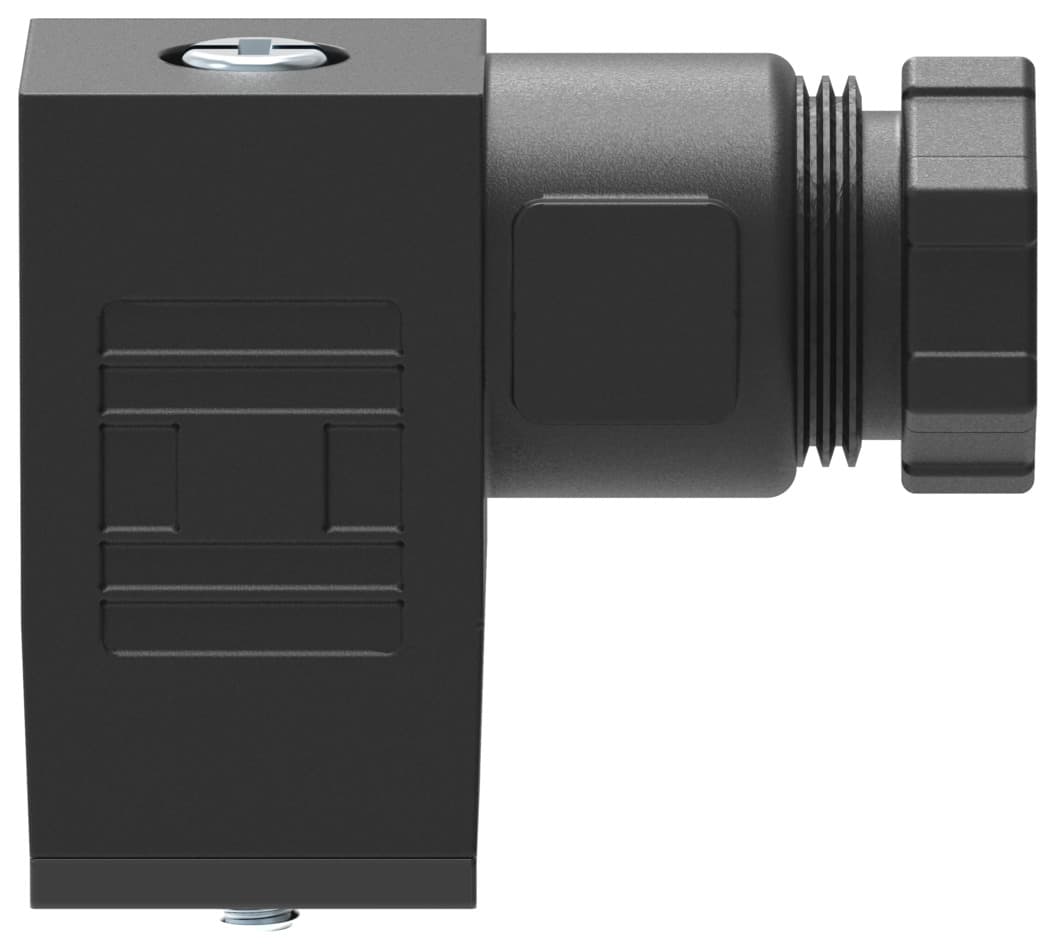

mssd-eb
Product ID:2303
Updated: 2026/4/4
Key Features
- 1Utilize durable polymer housing for long-lasting performance in various environments. 2、Mount on solenoid valves via M2.5 central screws for flexible installation. 3、Route cables easily with the rotatable angled outlet to reduce clutter. 4、Support operational voltages from 0 to 300 V DC and 0 to 250 V AC. 5、Ensure protection with an IP65 rating against dust and water jets.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | On air solenoid valve with M2.5 central screw | Cable outlet | Angled |
| Note on cable outlet | Can be rotated through 90° | Mounting position | Any |
| Product weight | 11g | Electrical connection | 3-pin Socket Socket, angled Form C as per DIN EN 175301-803 as per DIN EN 61984 Rectangular design MSEB Rectangular design MSN2 |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 00995650 | Electrical connection 2 | Screw terminal |
| DC operating voltage range | 0V 300V | Operating voltage range AC | 0V 250V |
| Current rating at 40° C | 6A | Current rating | 6A |
| Surge resistance | 4kV | Protective earth connection | Available |
| Cable fitting | Pg7 | Cable diameter | 6mm 8mm |
| Approved cable diameter | 7.5mm | Nominal conductor cross section | 0.75mm2 |
| Connection cross section | 0.75mm2 | Degree of protection | IP65 as per IEC 60529 |
| Note on degree of protection | In mounted state | Ambient temperature | -45°C 90°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
| Housing material | Polymer | Housing colour | Black |
| Seals material | NBR | Manufacturer ID | 151687 |
Specifications may be subject to change without notice
