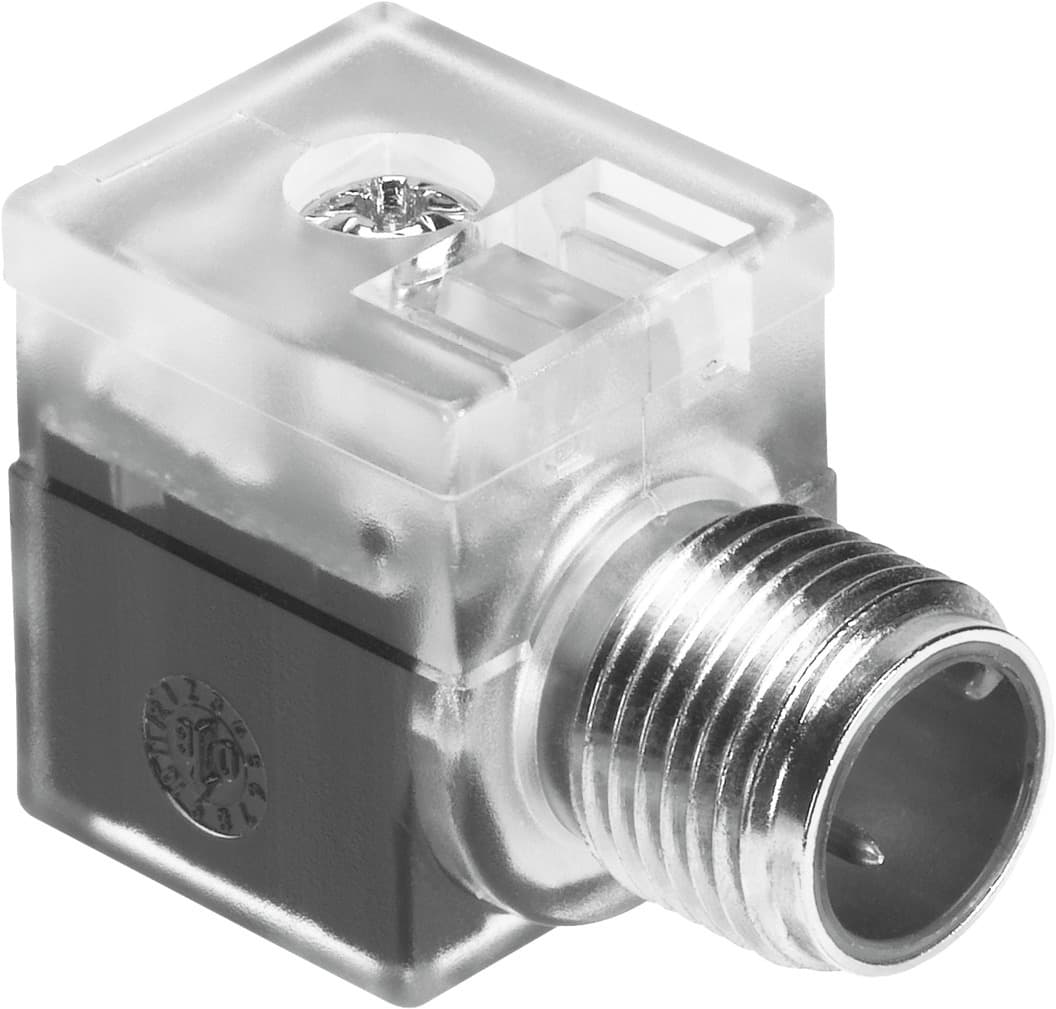

mssd-eb-m12-mono
Product ID:6189
Updated: 2026/7/4
Key Features
- 1Mount securely on solenoid valves via a central M2.5 screw.
- 2Feature electrical type C per EN 175301-803 and a 2-pin M12 connector.
- 3Operate from 12-24V DC/AC with a 24V DC nominal voltage.
- 4Ensure safe operation with 2.5 kV surge immunity and 0.12A load.
- 5Check valve status via the LED indicator for durable PA housing.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 175301-803 EN 61076-2-101 EN 61984 | Switching position indication | LED |
| Type of mounting | On air solenoid valve with M2.5 central screw | Product weight | 13.18g |
| Electrical connection 1 | Socket, as per EN 175301-803, form C | Electrical connection 2 | Straight plug, M12x1, 2-pin, A-coded |
| DC operating voltage range | 12V 24V | Nominal operating voltage DC | 24V |
| Operating voltage range AC | 12V 24V | Current rating | 0.12A |
| Surge resistance | 2.5kV | Degree of protection | IP65 |
| Ambient temperature | -10°C 50°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Housing material | PA | Housing colour | Transparent |
| Material of screw-type lock | Steel, nickel-plated | Seals material | HNBR NBR |
| Material of pin contacts | Copper alloy, silver-plated Brass, gold-plated | Manufacturer ID | 188024 |
Specifications may be subject to change without notice
