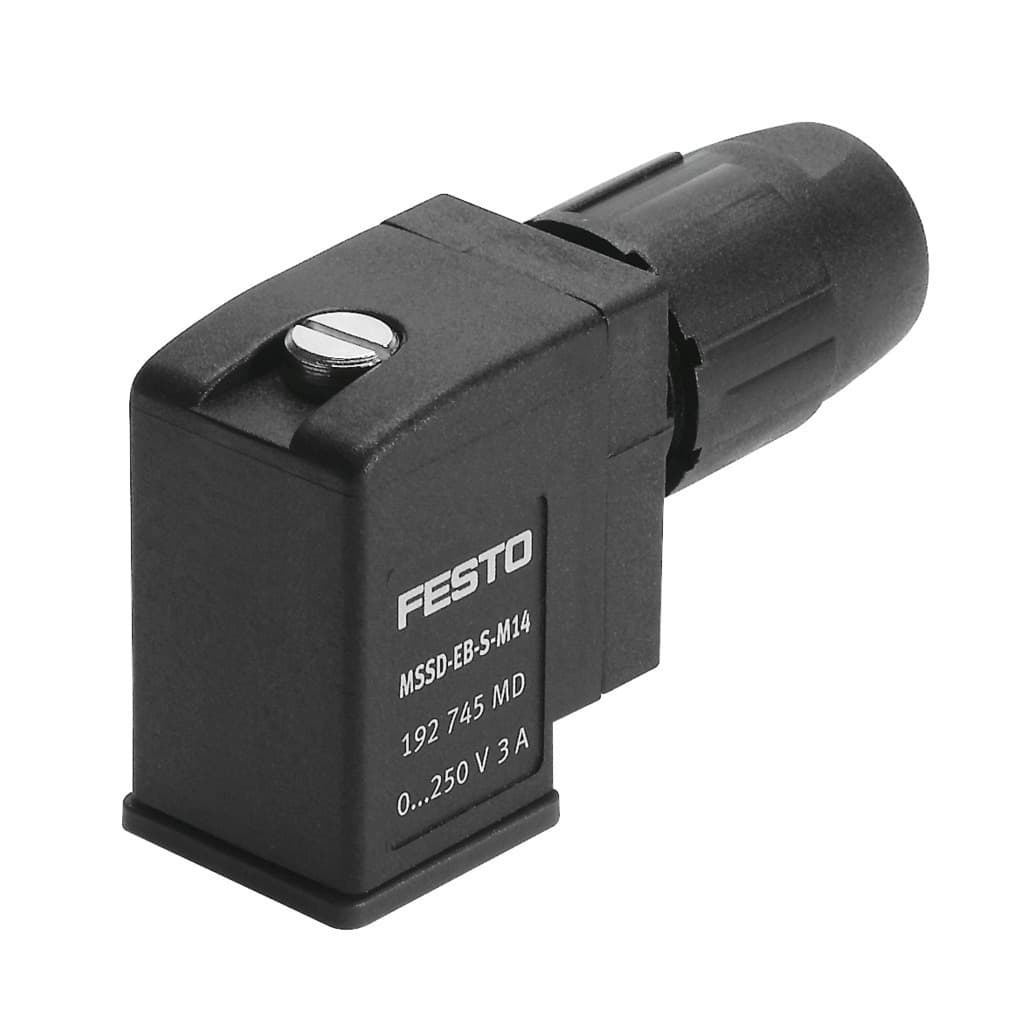

mssd-eb-s-m14
Product ID:7241
Updated: 2026/4/3
Key Features
- 1Mount on any solenoid valve via an M2.5 central screw. 2、Ensure durability with high-quality PA-reinforced polymer housing. 3、Achieve IP67 protection against dust and water ingress. 4、Operate reliably from -25°C to 90°C ambient temperature. 5、Integrate easily with a compact, 17-gram lightweight design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Contact durability | 10 | Type of mounting | On air solenoid valve with M2.5 central screw |
| Mounting position | Any | Product weight | 17g |
| Electrical connection | 4-pin Socket Form C | Cable diameter | 4mm 6mm |
| Nominal conductor cross section | 0.25mm2 0.5mm2 | Degree of protection | IP67 as per IEC 60529 |
| Ambient temperature | -25°C 90°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Housing material | PA | Housing colour | Black |
| Manufacturer ID | 192745 |
Specifications may be subject to change without notice
