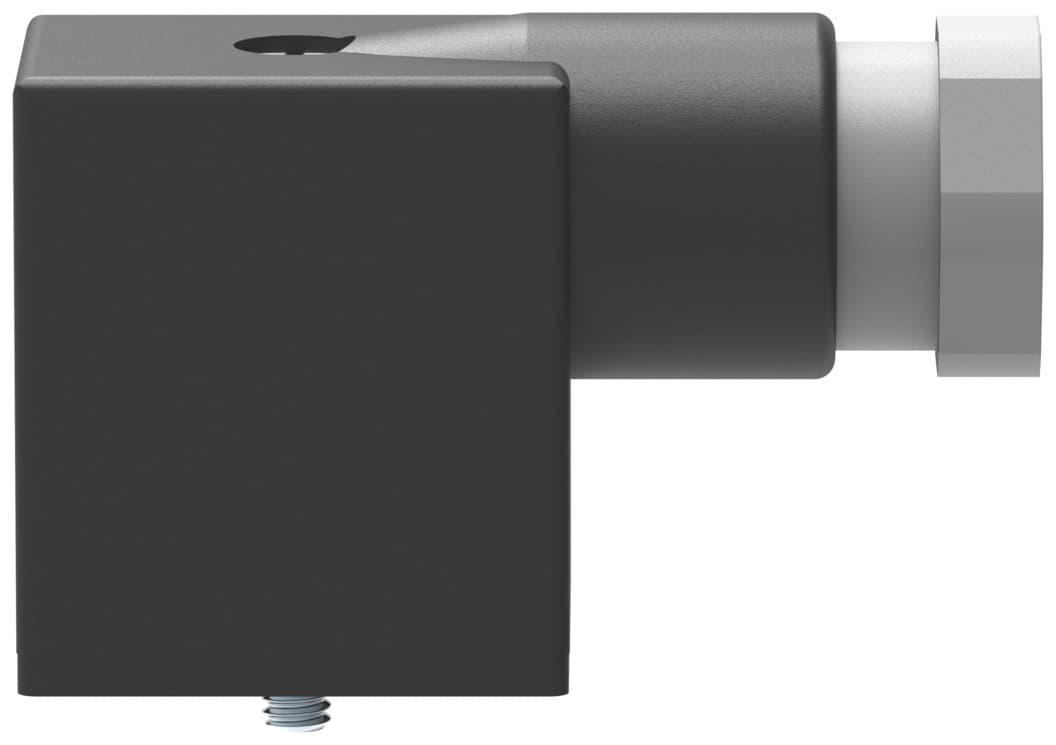

mssd-f-m16
Product ID:10495
Updated: 2026/7/4
Key Features
- 1Rotate the angled cable outlet 180° for flexible installation.
- 2Handle high-current applications with a 6A rating.
- 3Ensure durability using corrosion-resistant PA polymer.
- 4Connect to various power sources from 0-250V AC/DC.
- 5Protect against dust and water with IP65 enclosure.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Contact durability | 50 | Cable outlet | Angled |
| Note on cable outlet | Can be rotated through 180° | Product weight | 35g |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, connection technology | Connection diagram form B as per industrial standard, 11 mm | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw | Electrical connection for input 1, connection pattern | 00995619 |
| Electrical connection 2, connection technology | Screw terminal | DC operating voltage range | 0V 250V |
| Operating voltage range AC | 0V 250V | Current rating at 40° C | 6A |
| Surge resistance | 2kV | Protective earth connection | Available |
| Cable fitting | M16x1.5 | Cable diameter | 6mm 8mm |
| Nominal conductor cross section | 0.75mm2 | Degree of protection | IP65 |
| Note on degree of protection | In mounted state | Ambient temperature | -20°C 115°C |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA-reinforced | Housing colour | Black |
| Seals material | HNBR | Manufacturer ID | 539710 |
Specifications may be subject to change without notice
