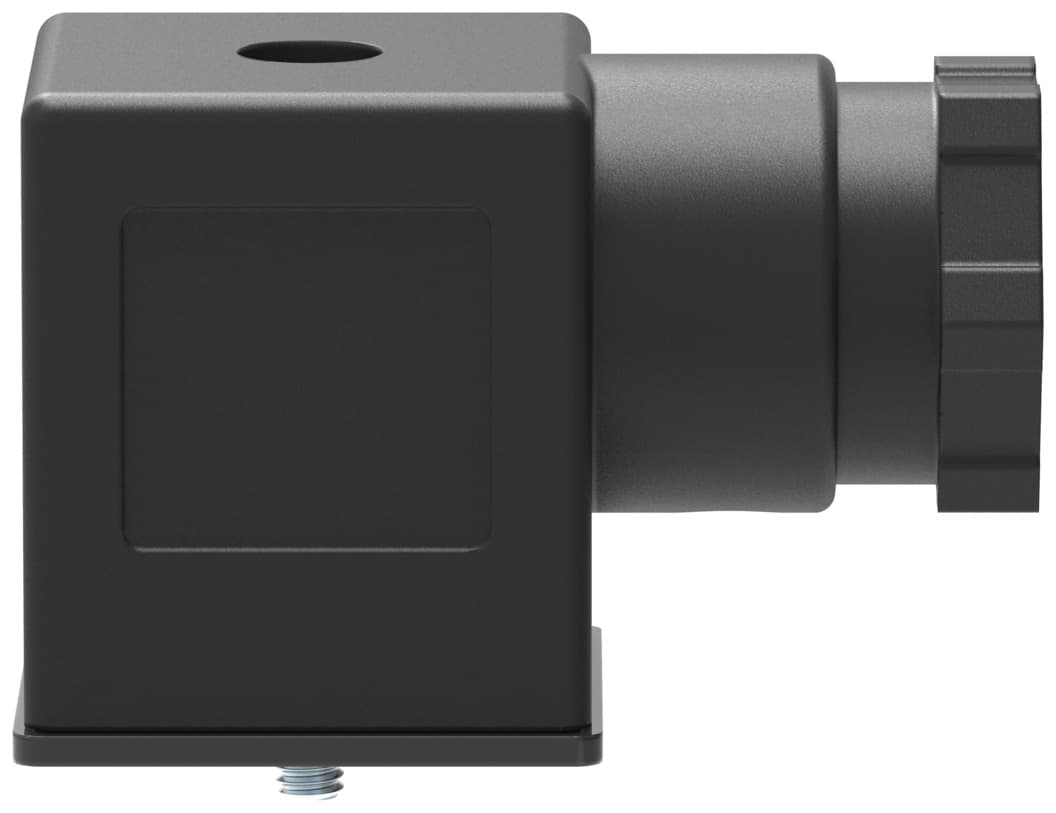

mssd-n
Product ID:11684
Updated: 2026/7/4
Key Features
- 1Construct the MSSD-N plug socket from durable PA-reinforced polymer with VMQ seals.
- 2Operate effectively across a wide temperature range from -25°C to 80°C.
- 3Ensure reliable performance in harsh conditions with IP65 protection rating.
- 4Mount easily on solenoid valves using standard M3 central screws.
- 5Support up to 16A current and withstand 2 kV surge for stable connections.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 175301-803 | Cable outlet | Angled |
| Product weight | 30g | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | Connection diagram form A as per EN 175301-803 |
| Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw |
| Electrical connection for input 1, connection pattern | 00995648 | Electrical connection 2, connection technology | Screw terminal |
| DC operating voltage range | 0V 24V | Operating voltage range AC | 0V 250V |
| Current rating at 40° C | 16A | Cable fitting | M20x1.5 |
| Cable diameter | 8mm 10mm | Nominal conductor cross section | 1.5mm2 |
| Degree of protection | IP65 | Note on degree of protection | In mounted state |
| Ambient temperature | -25°C 80°C | LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Housing colour | Black | Material of screws | Steel |
| Seals material | VMQ | Manufacturer ID | 550067 |
Specifications may be subject to change without notice
