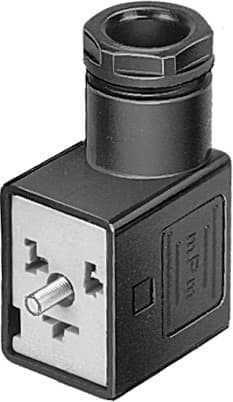

mssd-v
Product ID:8112
Updated: 2026/7/4
Key Features
- 1Ensure secure electrical connections for pneumatic systems with reliable performance.
- 2Rotate the angled cable outlet 180° for flexible mounting and easy installation.
- 3Handle currents up to 16 A at 40°C for demanding high-power applications.
- 4Meet IP65 protection standards with a protective conductor for harsh environments.
- 5Utilize high-quality, RoHS-compliant polymer materials for durable operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | On air solenoid valve with M3 central screw | Cable outlet | Angled |
| Note on cable outlet | Can be rotated through 180° | Mounting position | Any |
| Product weight | 18g | Electrical connection | 3-pin Socket Socket, angled Form B as per DIN EN 175301-803 Rectangular design MSV |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 2 | Screw terminal | DC operating voltage range | 0V 250V |
| Operating voltage range AC | 0V 250V | Current rating at 40° C | 16A |
| Protective earth connection | Available | Cable fitting | Pg9 |
| Cable diameter | 6mm 8mm | Nominal conductor cross section | 1.5mm2 |
| Degree of protection | IP65 | Note on degree of protection | In mounted state |
| Ambient temperature | -25°C 90°C | CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment | LABS (PWIS) conformity | VDMA24364-B2-L |
| Housing material | Polymer | Housing colour | Black |
| Seals material | NBR | Manufacturer ID | 33295 |
Specifications may be subject to change without notice
