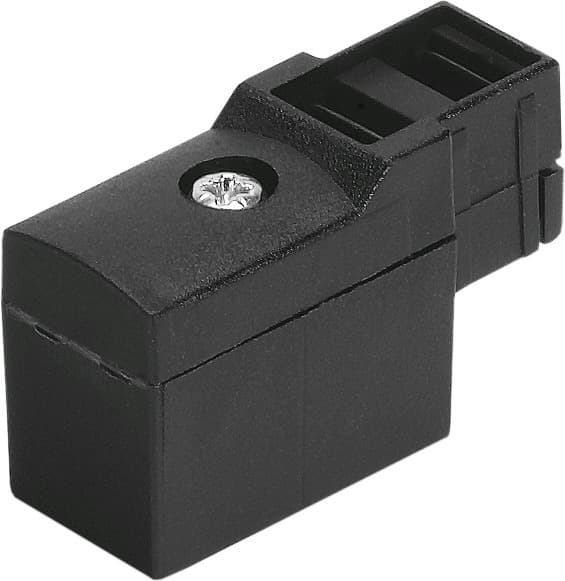

mssd-zbzc
Product ID:5736
Updated: 2026/7/4
Key Features
- 1Connect to Festo ZB and ZC solenoid valve coils.
- 2Install easily with self-tapping central screw mounting.
- 3Operate across a wide 3 V to 36 V DC voltage range.
- 4Ensure reliability with IP50 protection rating.
- 5Use in maritime applications with PA material and CRC 1.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Maritime classification | See certificate | Type of mounting | On air solenoid valve with self-tapping screw |
| Mounting position | Any | Product weight | 11g |
| Electrical connection | Socket | DC operating voltage range | 3V 36V |
| Nominal operating voltage DC | 24V | Nominal conductor cross section | 0.22mm2 0.34mm2 |
| Degree of protection | IP50 | Ambient temperature | -10°C 50°C |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA |
| Manufacturer ID | 185521 |
Specifications may be subject to change without notice
