Key Features

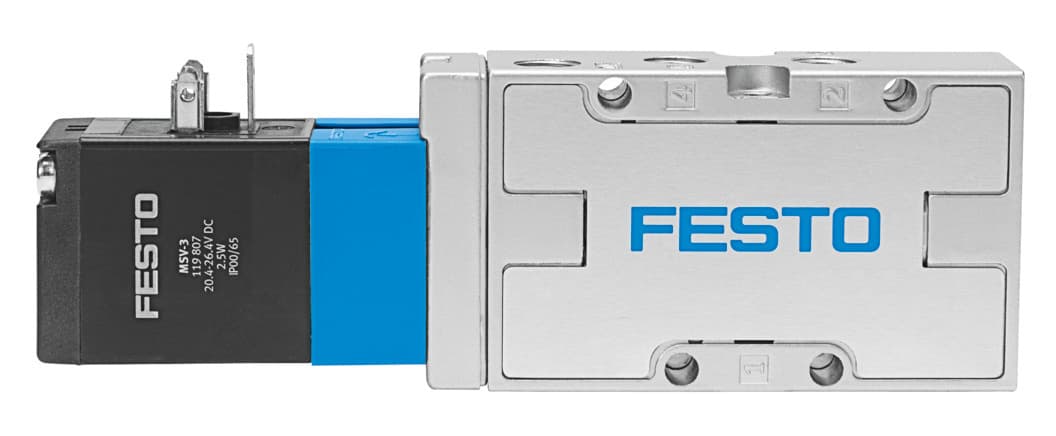

- 1Control pneumatic systems reliably with this 5/2-way monostable Festo MVH-5-1/8-S-B solenoid valve.
- 2Achieve high flow rates and rapid switching times for efficient application performance.
- 3Utilize a compact 26mm construction width to save valuable panel space.
- 4Operate safely under pressures up to 10 bar for versatile industrial use.
- 5Integrate easily with electric actuation and benefit from minimal maintenance needs.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 26mm | Standard nominal flow rate | 750l/min |
| Pneumatic working port | G1/8 | Operating voltage | 24V DC |
| Operating pressure | 0bar 10bar | Structural design | Plate seat |
| Reset method | Mechanical spring | Nominal width | 5mm |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Non-reversible |
| Symbol | 00991024 | Lap | Underlap |
| Pilot pressure MPa | 0.2MPa 1MPa | Pilot pressure | 2bar 10bar |
| b-value | 0.34 | C value | 3l/sbar |
| Max. switching frequency | 3Hz | Switching time off | 36ms |
| On switching time | 20ms | Max. positive test pulse with 0 signal | 2200μs |
| Max. negative test pulse on 1 signal | 3700μs | Coil characteristics | 24 V DC: 2.5 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -40°C 60°C |
| Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 50°C | Product weight | 230g |
| Type of mounting | Optionally: On PR rail With through-hole | Auxiliary pilot air port 14 | G1/8 |
| Pilot exhaust air port 84 | M5 | Pilot air port 14 | G1/8 |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Seals material | NBR TPE-U(PU) | Housing material | Die-cast aluminum |
| Manufacturer ID | 30996 |
