Key Features
- 1Ensure precise 5/2-way monostable control for reliable operation.
- 2Deliver 2000 l/min flow for demanding pneumatic systems.
- 3Provide durable, low-maintenance operation with soft sealing.
- 4Feature a compact 40 mm width for easy system integration.
- 5Guarantee quality with RoHS compliance and aluminum housing.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 40mm | Standard nominal flow rate | 2000l/min |
| Pneumatic working port | G3/8 | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Nominal width | 12mm |
| Width dimension | 41mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991035 | Lap | Overlap |
| Max. switching frequency | 3Hz | Switching time off | 60ms |
| On switching time | 22ms | Max. positive test pulse with 0 signal | 2200μs |
| Max. negative test pulse on 1 signal | 3700μs | Coil characteristics | 24 V DC: 2.5 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -40°C 60°C |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Product weight | 750g | Type of mounting | Optionally: On PR rail With through-hole |
| Pilot exhaust air port 84 | M5 | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 4 | G3/8 | Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 14945 |
Specifications may be subject to change without notice

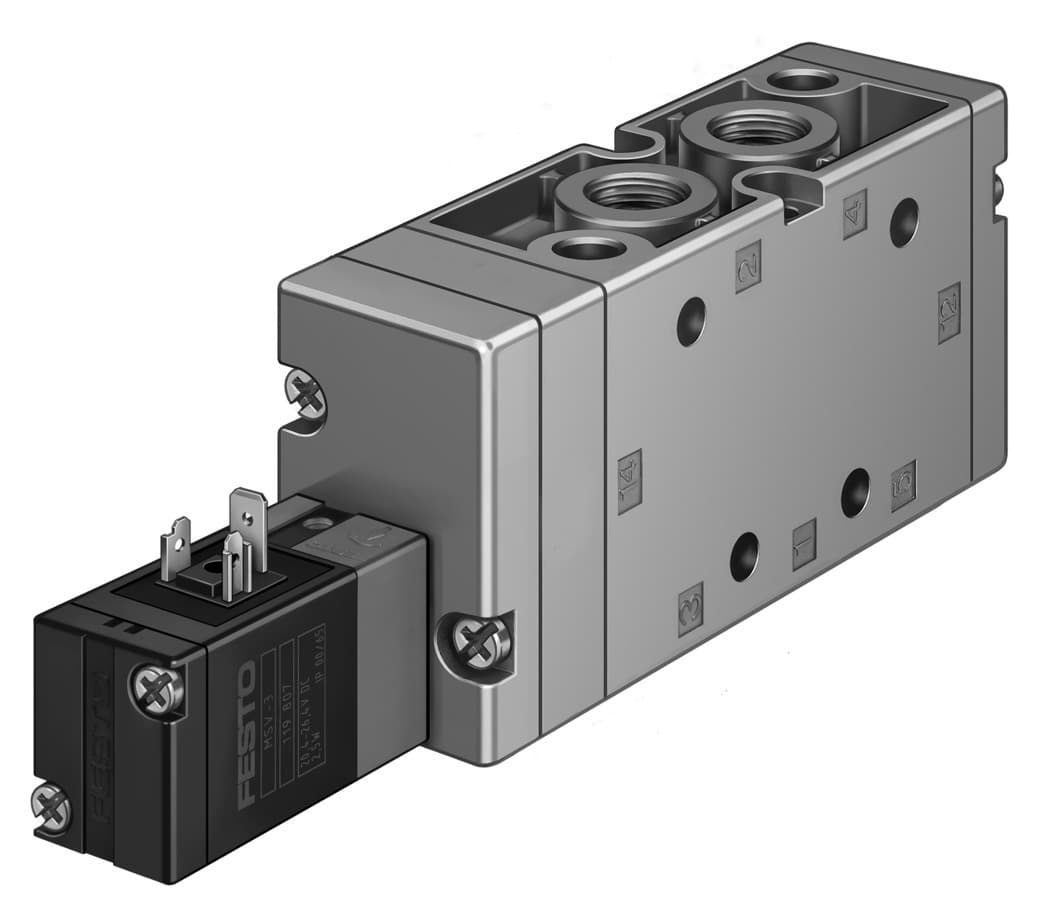

Still deciding on mvh-5-3/8-b?
