Key Features
- 1Deliver 1000 l/min nominal flow for demanding industrial applications.
- 2Provide precise control with 24V DC electrical actuation.
- 3Ensure reliable operation via mechanical spring return and lap overlap.
- 4Offer flexible installation with optional PR rail or through-hole mounting.
- 5Meet ISO 8573-1:2010 and ISO 13849-1 standards for safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, exhausted | Actuation type | Electrical |
| Width | 26mm | Standard nominal flow rate | 1000l/min |
| Pneumatic working port | G1/8 | Operating voltage | 24V DC |
| Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Nominal width | 8mm |
| Width dimension | 27mm | Sealing principle | Soft |
| Mounting position | Any | Manual override | Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00991036 |
| Lap | Overlap | Max. switching frequency | 3Hz |
| Switching time off | 29ms | On switching time | 30ms |
| Changeover time | 34ms | Max. positive test pulse with 0 signal | 2200μs |
| Max. negative test pulse on 1 signal | 3700μs | Coil characteristics | 24 V DC: 2.5 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -40°C 60°C |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Product weight | 575g | Type of mounting | Optionally: On PR rail With through-hole |
| Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 30478 |
Specifications may be subject to change without notice

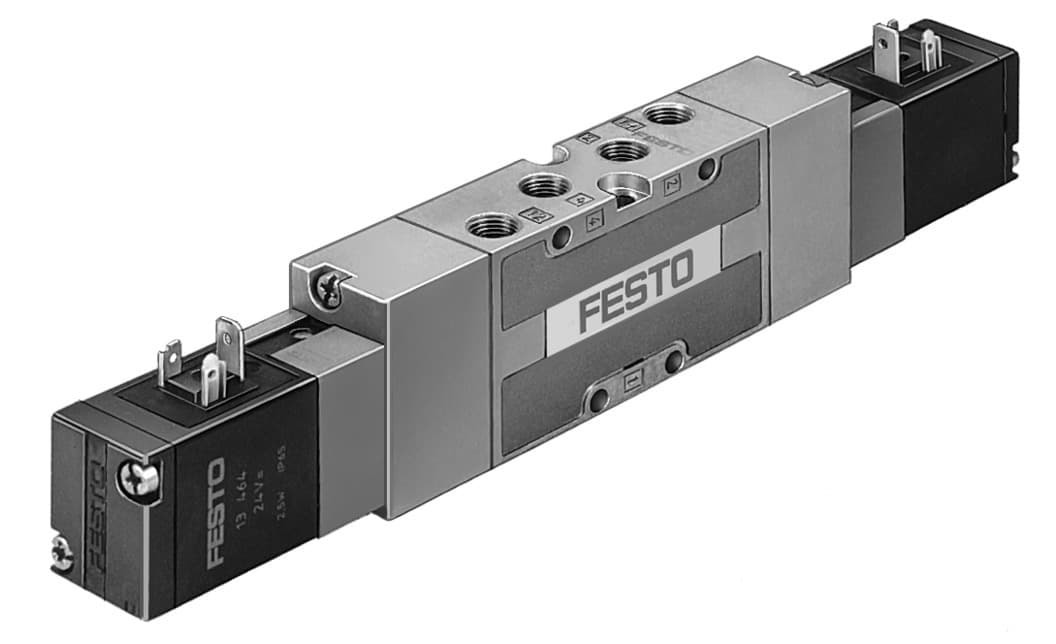

Still deciding on mvh-5/3e-1/8-b?
