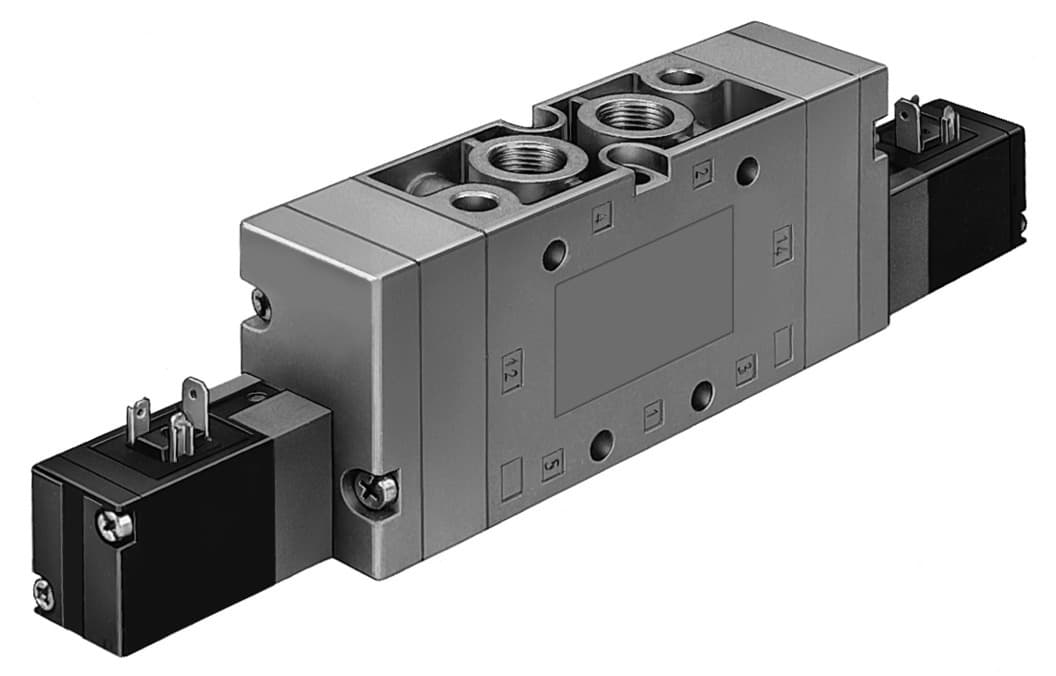

Key Features
- 1Control precisely with 5/3 closed-center function and 24V DC operation. 2、Achieve 2200 l/min nominal flow standardized to DIN 1343. 3、Ensure durability with die-cast aluminum housing and NBR seals. 4、Enable quick switching with 27 ms on-time for high-frequency use. 5、Meet safety standards like ISO 13849-1 for reliable applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, closed | Actuation type | Electrical |
| Width | 40mm | Standard nominal flow rate | 2200l/min |
| Pneumatic working port | G3/8 | Operating voltage | 24V DC |
| Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Nominal width | 12mm |
| Width dimension | 41mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991033 | Lap | Overlap |
| Max. switching frequency | 3Hz | Switching time off | 89ms |
| On switching time | 27ms | Changeover time | 57ms |
| Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
| Coil characteristics | 24 V DC: 2.5 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -40°C 60°C | Temperature of medium | -5°C 50°C |
| Ambient temperature | -5°C 50°C | Product weight | 780g |
| Type of mounting | Optionally: On PR rail With through-hole | Pilot exhaust air port 82 | M5 |
| Pilot exhaust air port 84 | M5 | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 4 | G3/8 | Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 14944 |
Specifications may be subject to change without notice
