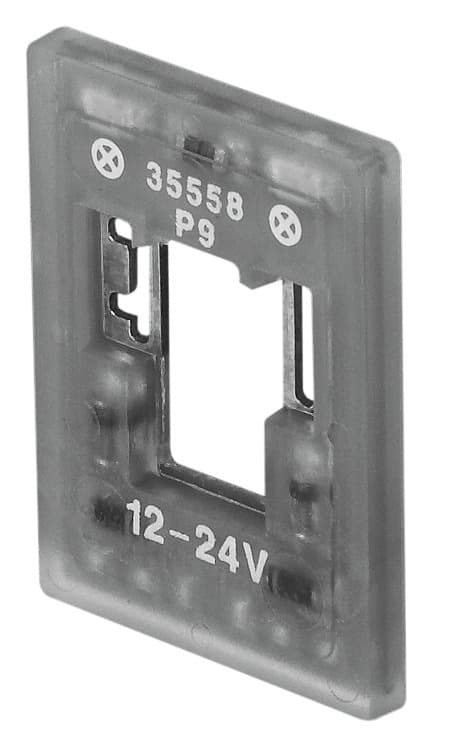

mv-ld-12-24dc
Product ID:8276
Updated: 2026/7/4
Key Features
- 1Monitor valve status instantly with the integrated LED position indicator.
- 2Install easily using the standard M3 central screw mounting.
- 3Reduce system weight with a component of just 1.6 grams.
- 4Ensure durability in temperatures from -25°C to 85°C with TPE-U material.
- 5Protect against dust and water jets with a robust IP65 enclosure rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Switching position indication | LED | Type of mounting | On air solenoid valve with M3 central screw |
| Product weight | 1.6g | Electrical connection | Form B as per DIN EN 175301-803 Rectangular design MSV |
| DC operating voltage range | 12V 24V | Protective earth connection | Available |
| Nominal power luminous seal | 0.05W | Degree of protection | IP65 |
| Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Housing material | TPE-U(PU) | Color | Transparent |
| Manufacturer ID | 35558 |
Specifications may be subject to change without notice
