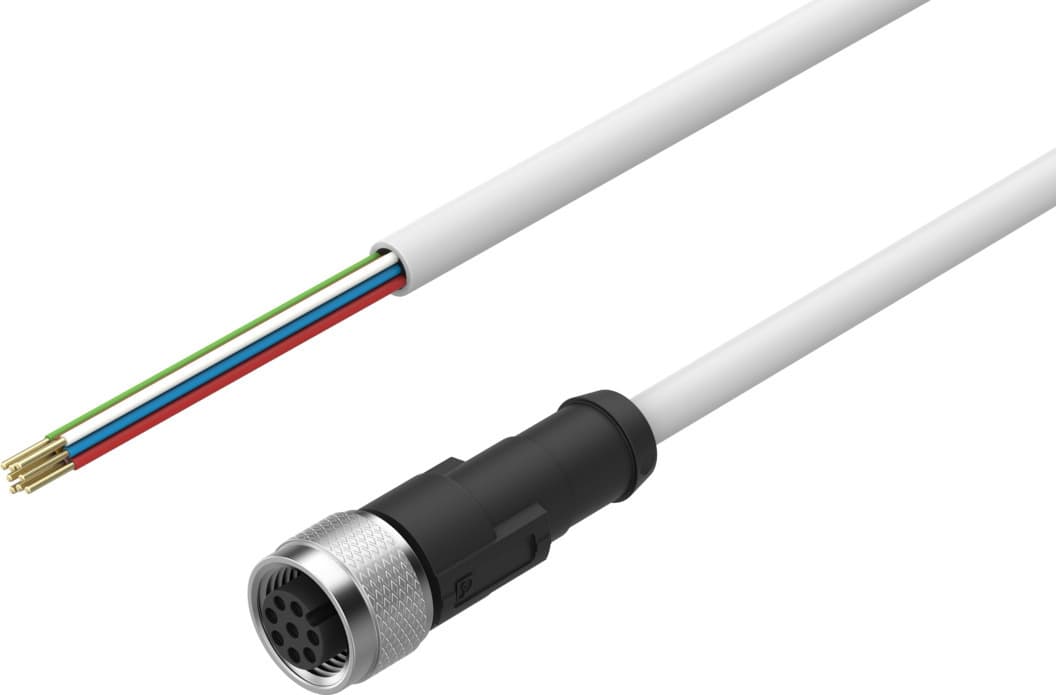

nebc-m12g8-e-10-n-b-le8
Product ID:16671
Updated: 2026/4/3
Key Features
- 1Ensure reliable connections with a high-quality M12 connector. 2、Cover distances easily with a 10-meter cable length. 3、Protect against harsh conditions with IP65/67 ingress protection. 4、Meet safety standards with UL certification (OL). 5、Integrate seamlessly into energy chains for efficient automation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-101 | Certification | c UL us - Listed (OL) |
| Certificate issuing authority | UL E474609 | Cable designation | Without label holder |
| Product weight | 489g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00992265 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 8 |
| Electrical connection 2, occupied pins/wires | 8 | DC operating voltage range | 0V 30V |
| Operating voltage range AC | 0V 30V | Current rating at 40° C | 2A |
| Surge resistance | 0.8kV | Shield | no |
| Cable length | 10m | Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 30mm |
| Bending radius, flexible cable installation | 30mm | Cable diameter | 6mm |
| Cable diameter tolerance | ± 0.2 mm | Cable design | 8 x 0.25 mm2 |
| Nominal conductor cross section | 0.25mm2 | Wire ends | Stripped |
| Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state |
| Ambient temperature | -25°C 90°C | Ambient temperature with flexible cable installation | -25°C 90°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Silver-grey |
| Housing material | TPE-U(PUR) | Housing colour | Black |
| Material of screw-type lock | Die-cast zinc, nickel-plated | Seals material | NBR |
| Material of pin contacts | Brass | Insulating sheath material | PP |
| Manufacturer ID | 8094482 |
Specifications may be subject to change without notice
