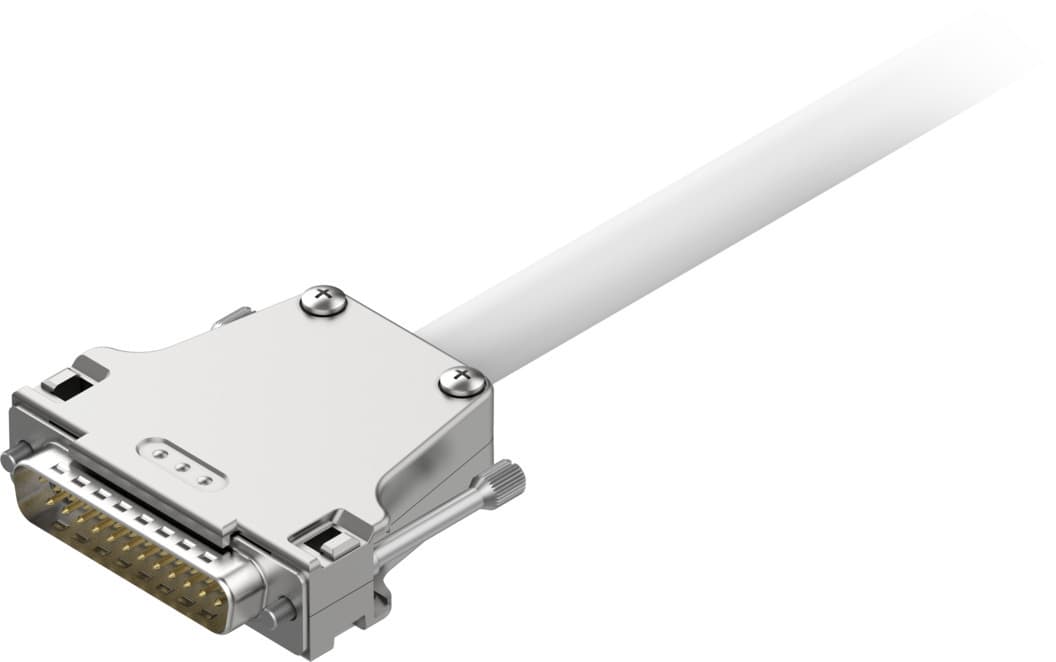

nebc-s1g25-k-2.5-n-le26
Product ID:11916
Updated: 2026/4/3
Key Features
- 1Ensure secure connections with a 25-pin Sub-D design and straight plug. 2、Maximize durability using a robust PVC sheath and nickel-plated contacts. 3、Meet EU RoHS Directive for hazardous substance compliance. 4、Install flexibly in any position for motor controllers. 5、Support 0-30V DC systems with a 24V nominal rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Mounting position | Any |
| Product weight | 570g | Electrical connection 1 | Straight plug, Sub-D, 25-pin |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Plug | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Sub-D | Electrical connection 1, number of pins/wires | 25 |
| Electrical connection 1, occupied pins/wires | 25 | Electrical connection 1, type of mounting | 2x screw, 4-40 UNC |
| Electrical connection for input 1, connection pattern | 00995643 | Electrical connection 2 | Open end, 26-wire |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 26 |
| Electrical connection 2, occupied pins/wires | 26 | DC operating voltage range | 0V 30V |
| Nominal operating voltage DC | 24V | Current rating at 40° C | 3.9A |
| Current rating | 3.9A | Surge resistance | 0.8kV |
| Shield | yes | Cable length | 2.5m |
| Cable characteristic | Standard | Connector cable test conditions | Flexural strength: as per Festo standard |
| Min. cable bending radius | 220mm | Bending radius, fixed cable installation | 220mm |
| Cable diameter | 10.8mm | Cable diameter tolerance | ± 0.2 mm |
| Cable design | 5 x (2 x 0.25 mm2) + 16 x 0.25 mm2 | Nominal conductor cross section | 0.25mm2 |
| Connection cross section | 0.25mm2 | Wire ends | Cable end sleeve Pin terminal |
| Degree of protection | IP20 | Note on degree of protection | In mounted state |
| Ambient temperature | -30°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
| Color cable sheath | Gray | Housing material | Die-cast zinc, nickel-plated |
| Material of pin contacts | Copper alloy, tin-plated Nickel-plated and gold-plated | Insulating sheath material | PVC |
| Manufacturer ID | 552254 |
Specifications may be subject to change without notice
