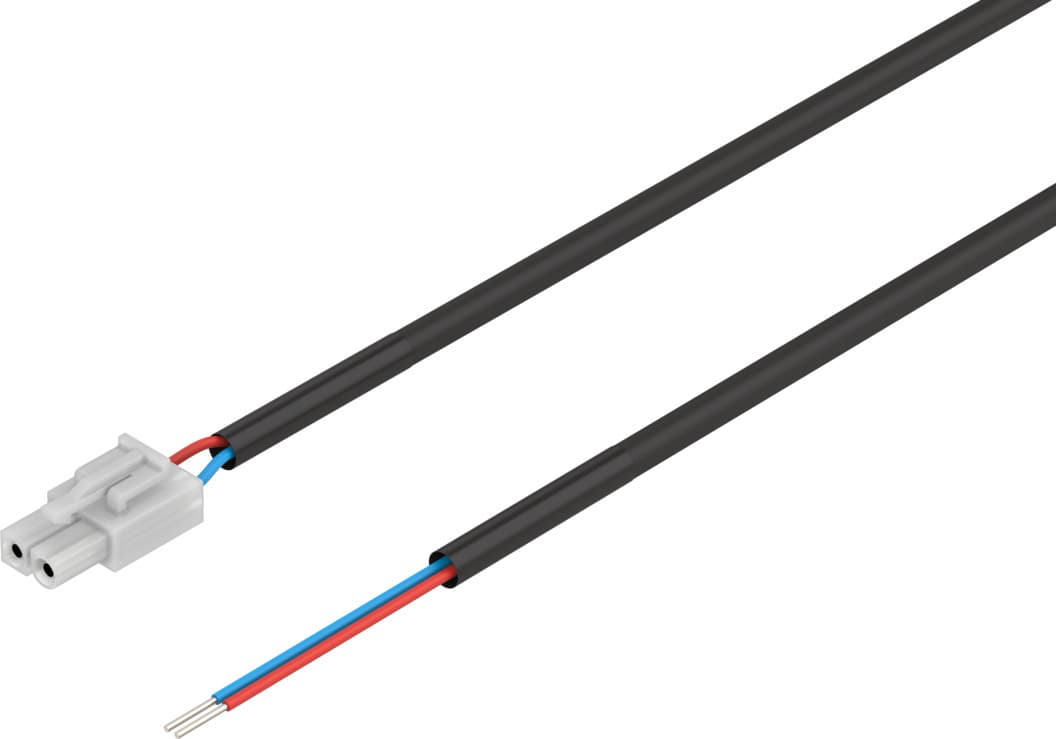

nebm-h7g2-e-7.5-q14n-le2
Product ID:8790
Updated: 2026/7/16
Key Features
- 1Ensure secure motor connections for optimal performance.
- 2Provide IP20 protection against solids and dust.
- 3Feature PVC sheathing for corrosion resistance.
- 4Allow flexible installation with a 55mm bend radius.
- 5Operate from -40°C to 80°C for versatile use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram H7, coded for motor brake |
| Electrical connection 1, number of pins/wires | 2 | Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection for input 1, connection pattern | 00995791 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 2 | Electrical connection 2, occupied pins/wires | 2 |
| DC operating voltage range | 0V 30V | Operating voltage range AC | 0V 30V |
| Current rating at 40° C | 5A | Surge resistance | 2kV |
| Cable length | 7.5m | Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 27mm |
| Bending radius, flexible cable installation | 55mm | Cable diameter | 5.1mm |
| Cable design | 2 x 0.51 mm2 | Nominal conductor cross section | AWG20 |
| Wire ends | Cable end sleeve | Degree of protection | IP20 |
| Note on degree of protection | In mounted state | Ambient temperature | -40°C 80°C |
| Ambient temperature with flexible cable installation | -10°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
| Color cable sheath | Black | Housing material | PA |
| Housing colour | White | Insulating sheath material | PVC |
| Manufacturer ID | 5219207 |
Specifications may be subject to change without notice
