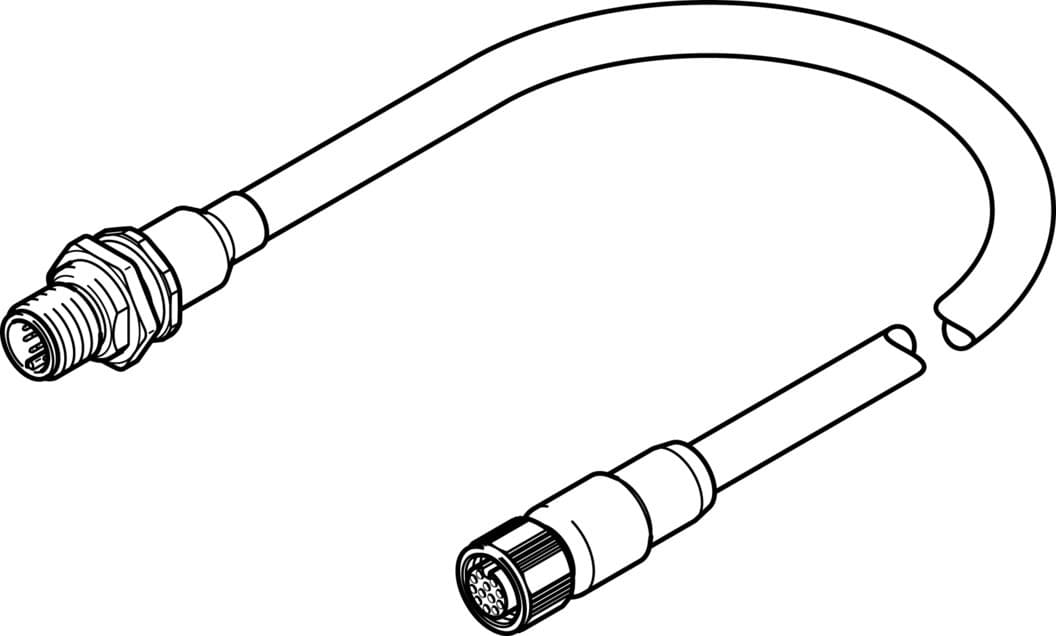

nebm-m12g12-rs-2.23-n-m12g12h
Product ID:13652
Updated: 2026/7/15
Key Features
- 1Conform to DIN 47100 and EN 61984 standards for reliable performance.
- 2Suit robot applications with a 70 mm bending radius.
- 3Ensure robustness in harsh environments with IP67 protection.
- 4Operate within an AC/DC voltage range of 0-30 V (24 V nominal).
- 5Maintain optimal signal integrity with a shielded 12 x 0.14 mm² structure.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | DIN 47100 EN 61984 | Cable designation | Without label holder |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 12 |
| Electrical connection 1, occupied pins/wires | 11 | Electrical connection 1, type of mounting | Screw-type lock with AF 14 |
| Electrical connection for input 1, connection pattern | 00995668 | Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round | Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 12 | Electrical connection 2, occupied pins/wires | 11 |
| Electrical connection 2, type of mounting | Screw-type lock with hexagon, AF 18 | Electrical connection 2, connection pattern | 00995669 |
| DC operating voltage range | 0V 30V | Nominal operating voltage DC | 24V |
| Operating voltage range AC | 0V 30V | Nominal operating voltage AC | 24V |
| Current rating at 40° C | 1A | Shield | yes |
| Cable length | 2.23m | Cable characteristic | Suitable for robot applications |
| Bending radius, flexible cable installation | 70mm | Cable diameter | 7mm |
| Cable design | 12 x 0.14 mm2 | Nominal conductor cross section | 0.14mm2 |
| Degree of protection | IP67 | Note on degree of protection | In mounted state |
| Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | 0°C 40°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Black |
| Housing material | TPE-U(PUR) | Seals material | NBR |
| Insulating sheath material | TPE-E | Manufacturer ID | 571902 |
Specifications may be subject to change without notice
