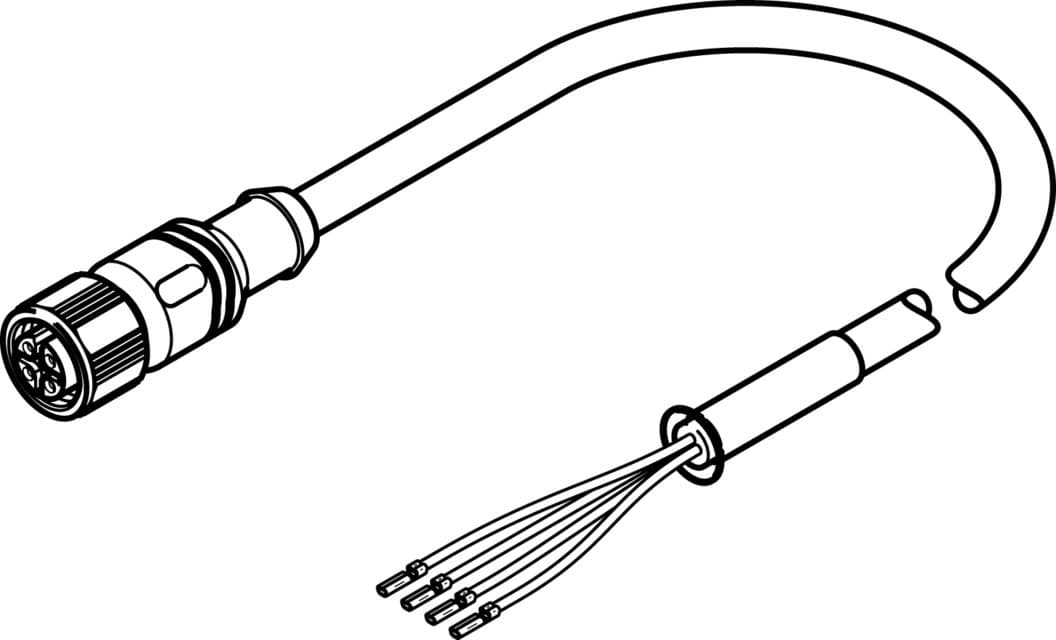

nebm-m12g4-rs-15-n-le4
Product ID:13653
Updated: 2026/7/15
Key Features
- 1Connect Festo servo and stepper motors reliably with this robust cable.
- 2Ensure IP67 protection for operation in harsh industrial environments.
- 3Optimize robotic applications with a ≥60 mm bending radius.
- 4Achieve flexible layouts using the full 15-meter cable length.
- 5Benefit from durable TPE-U(PUR) and NBR materials for longevity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | DIN 47100 EN 61984 | Cable designation | Without label holder |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock with AF 14 |
| Electrical connection for input 1, connection pattern | 00995385 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 4 | Electrical connection 2, occupied pins/wires | 4 |
| DC operating voltage range | 0V 250V | Operating voltage range AC | 0V 250V |
| Current rating at 40° C | 4A | Shield | yes |
| Cable length | 15m | Cable characteristic | Suitable for robot applications |
| Bending radius, flexible cable installation | 60mm | Cable diameter | 5.9mm |
| Cable design | 4 x 0.34 mm2 | Nominal conductor cross section | 0.34mm2 |
| Wire ends | Cable end sleeve | Degree of protection | IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -25°C 80°C |
| Ambient temperature with flexible cable installation | 0°C 40°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Black | Housing material | TPE-U(PUR) |
| Seals material | NBR | Insulating sheath material | TPE-E |
| Manufacturer ID | 571907 |
Specifications may be subject to change without notice
