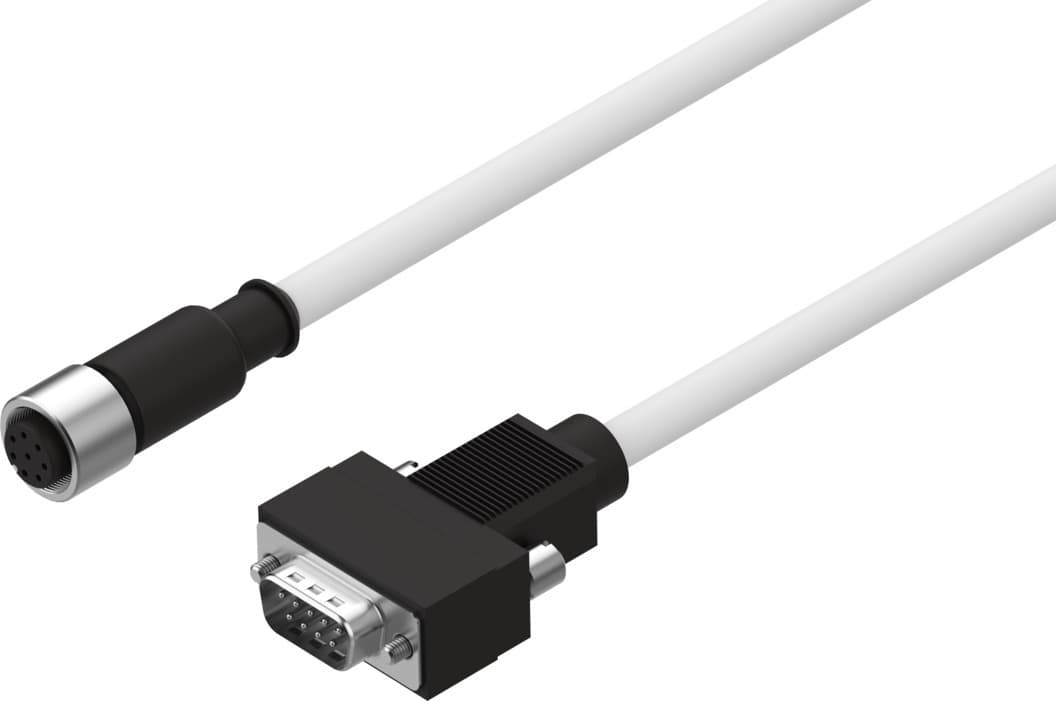

nebm-m12g8-e-15-s1g9-v3
Product ID:3977
Updated: 2026/7/8
Key Features
- 1Ensure reliable communication in demanding industrial environments.
- 2Withstand flexible installations with a 100 mm bending radius.
- 3Operate across a versatile 0-30V DC/AC voltage range.
- 4Meet EU RoHS standards with high-corrosion-resistant TPE-U(PUR) material.
- 5Protect against dust and water ingress with IP65 rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection for input 1, connection pattern | 00992265 | Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | Sub-D |
| Electrical connection 2, number of pins/wires | 9 | Electrical connection 2, occupied pins/wires | 8 |
| Electrical connection 2, connection pattern | 00995639 | DC operating voltage range | 0V 30V |
| Nominal operating voltage DC | 24V | Operating voltage range AC | 0V 30V |
| Nominal operating voltage AC | 24V | Shield | yes |
| Cable length | 15m | Cable characteristic | Suitable for energy chains |
| Bending radius, flexible cable installation | 100mm | Cable diameter | 8.2mm |
| Cable design | 3 x (2 x 0.14 mm2) + 2 x (0.5 mm2) | Nominal conductor cross section | 0.5mm2 |
| Degree of protection | IP65 | Note on degree of protection | In mounted state |
| Ambient temperature | -50°C 80°C | Ambient temperature with flexible cable installation | -40°C 75°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray | Manufacturer ID | 1599107 |
Specifications may be subject to change without notice
