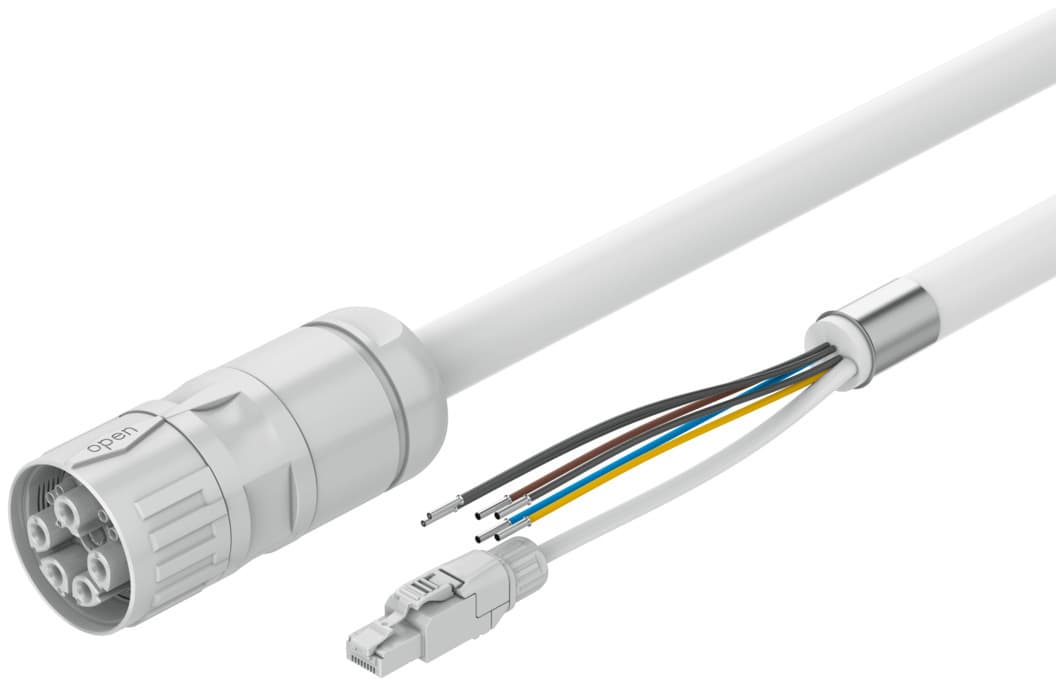

nebm-m40g15-eh- -q12n-r3leg14
Product ID:8842
Updated: 2026/7/16
Key Features
- 1Ensure robust connections with a 15-pin hybrid socket.
- 2Handle 6 kV surges for demanding industrial applications.
- 3Protect against dust and water with an IP67 rating.
- 4Achieve flexible installation with a 123 mm bending radius.
- 5Meet EN 61984 and RoHS safety and environmental standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61984 | Cable designation | Without label holder |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Hybrid socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M40x1 | Electrical connection 1, number of pins/wires | 15 |
| Electrical connection 1, occupied pins/wires | 12 | Electrical connection 1, type of mounting | Snap-locking |
| Electrical connection for input 1, connection pattern | 00997393 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Plugs and cables | Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | RJ45 and open end | Electrical connection 2, number of pins/wires | 14 |
| Electrical connection 2, occupied pins/wires | 12 | DC operating voltage range | 0V 850V |
| Operating voltage range AC | 0V 630V | Current rating at 40° C | 40A |
| Surge resistance | 6kV | Cable length | 0.5m 100m |
| Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | 74.8mm | Bending radius, flexible cable installation | 140.25mm |
| Cable diameter | 18.7mm | Cable diameter tolerance | ± 0.3 mm |
| Cable design | 4 x 6 mm2 + 1 x (2 x 1.5 mm2) + 1 x (2 x 0.24 mm2 + 2 x 2 x 0.15 mm2) | Wire ends | Cable end sleeve |
| Degree of protection | IP67 | Note on degree of protection | Depending on manifold block |
| Ambient temperature | -40°C 90°C | Ambient temperature with flexible cable installation | -25°C 80°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | PUR | Color cable sheath | Gray |
| Insulating sheath material | PP | Manufacturer ID | 5251401 |
