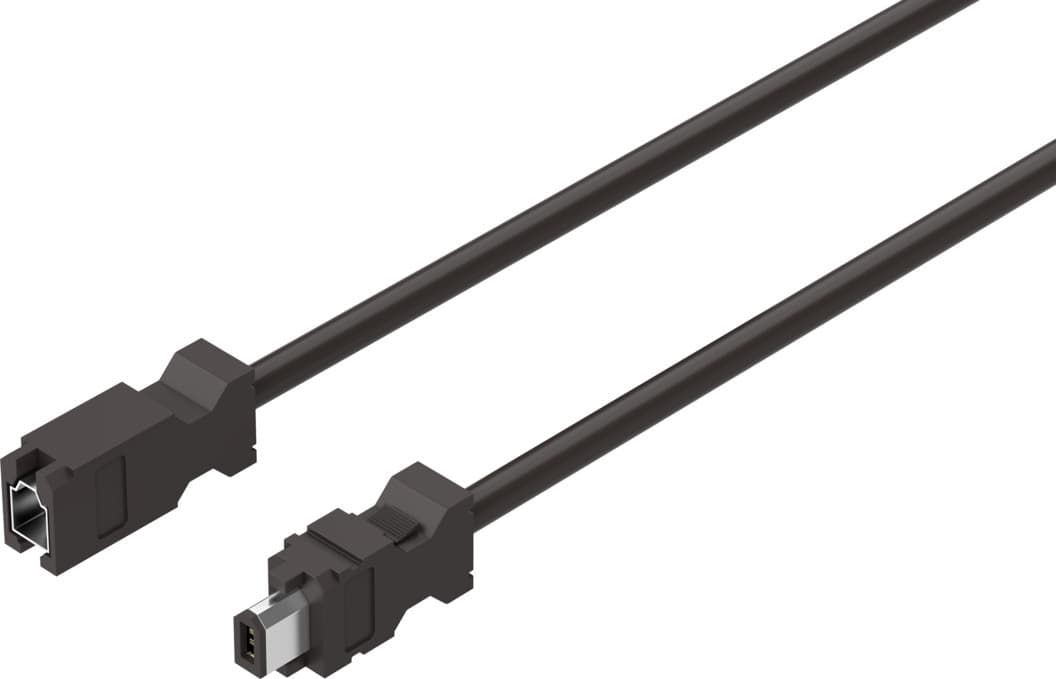

nebm-reg6-e-2.5-q14n-reg6
Product ID:8792
Updated: 2026/7/16
Key Features
- 1Ensure precise servo feedback control with reliable performance.
- 2Handle demanding 1.6A rated current for continuous operation.
- 3Utilize high-quality Festo NEBM series durable components.
- 4Connect securely with robust angular constructive shape design.
- 5Integrate seamlessly into motors and servo drives efficiently.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram RE |
| Electrical connection 1, number of pins/wires | 6 | Electrical connection 1, occupied pins/wires | 6 |
| Electrical connection for input 1, connection pattern | 00995793 | Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | Connection diagram RE |
| Electrical connection 2, number of pins/wires | 6 | Electrical connection 2, occupied pins/wires | 6 |
| Electrical connection 2, connection pattern | 00995792 | DC operating voltage range | 0V 30V |
| Operating voltage range AC | 0V 30V | Current rating at 40° C | 1.6A |
| Surge resistance | 2kV | Cable length | 2.5m |
| Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | 55mm | Bending radius, flexible cable installation | 55mm |
| Cable diameter | 7.4mm | Cable design | 2 x 0.51 mm2 + 4 x 0.205 mm2 |
| Nominal conductor cross section | AWG20 AWG24 | Degree of protection | IP20 |
| Note on degree of protection | In mounted state | Ambient temperature | -40°C 80°C |
| Ambient temperature with flexible cable installation | -10°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
| Color cable sheath | Black | Housing material | PVC |
| Housing colour | Gray | Insulating sheath material | PVC |
| Manufacturer ID | 5219213 |
Specifications may be subject to change without notice
