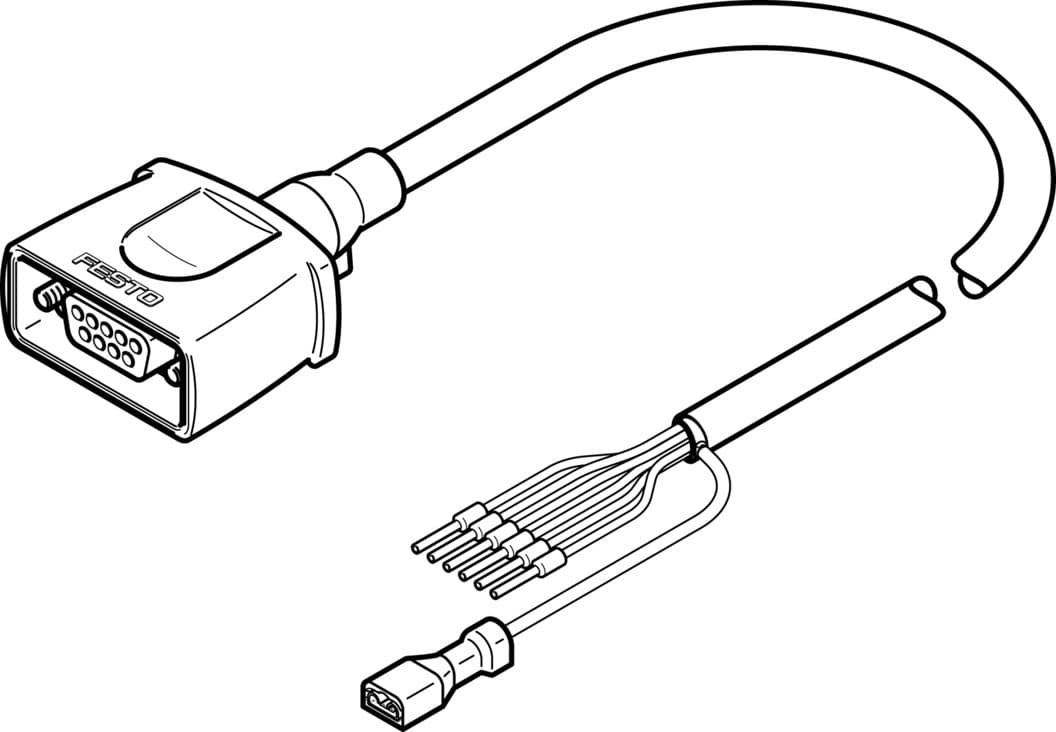

nebm-s1g9-e-7-q5-le6
Product ID:1621
Updated: 2026/4/3
Key Features
- 1Use in energy chains for reliable power transmission. 2、Withstand stress with a 62 mm bending radius. 3、Ensure signal integrity via 0.34 mm² shielded conductors. 4、Operate reliably within a 0-72V DC range. 5、Meet RoHS with a corrosion-resistant TPE-U sheath.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Sub-D |
| Electrical connection 1, number of pins/wires | 9 | Electrical connection 1, occupied pins/wires | 6 |
| Electrical connection for input 1, connection pattern | 00995638 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 6 | Electrical connection 2, occupied pins/wires | 6 |
| DC operating voltage range | 0V 72V | Nominal operating voltage DC | 24V |
| Shield | yes | Cable length | 7m |
| Cable characteristic | Suitable for energy chains | Bending radius, flexible cable installation | 62mm |
| Cable diameter | 6.2mm | Cable design | 6 x 0.34 mm2 |
| Nominal conductor cross section | 0.34mm2 | Wire ends | Cable end sleeve |
| Degree of protection | IP65 | Note on degree of protection | In mounted state |
| Ambient temperature | -40°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray | Manufacturer ID | 1450371 |
Specifications may be subject to change without notice
