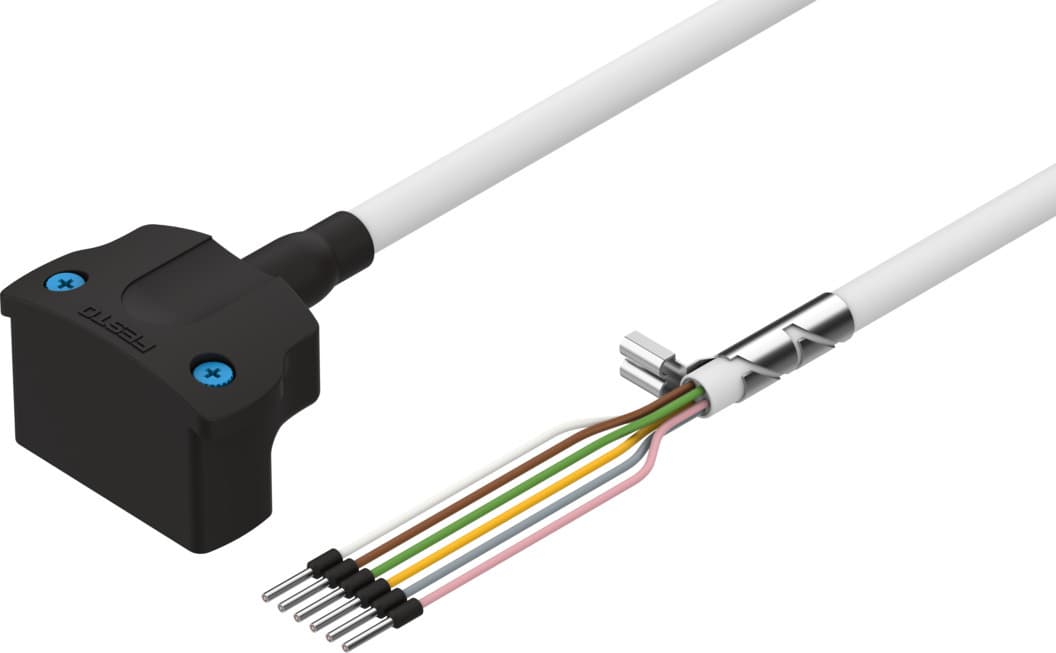

nebm-s1w15-e- -q7-le6
Product ID:1634
Updated: 2026/4/3
Key Features
- 1Ensure seamless connectivity for 15-pin motor plugs. 2、Belong to Festo's comprehensive NEBM cable series. 3、Meet stringent technical requirements for durability. 4、Deliver reliable performance in automation applications. 5、Maintain compatibility with a wide range of Festo equipment.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Sub-D |
| Electrical connection 1, number of pins/wires | 15 | Electrical connection 1, occupied pins/wires | 10 |
| Electrical connection for input 1, connection pattern | 00995640 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 6 | Electrical connection 2, occupied pins/wires | 6 |
| DC operating voltage range | 0V 72V | Nominal operating voltage DC | 24V |
| Shield | yes | Cable length | 1m 25m |
| Cable characteristic | Suitable for energy chains | Bending radius, flexible cable installation | 80mm |
| Cable diameter | 8mm | Cable design | 6 x 0.75 mm2 |
| Nominal conductor cross section | 0.75mm2 | Wire ends | Cable end sleeve |
| Degree of protection | IP65 | Note on degree of protection | In mounted state |
| Ambient temperature | -40°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray | Manufacturer ID | 1450948 |
Specifications may be subject to change without notice
