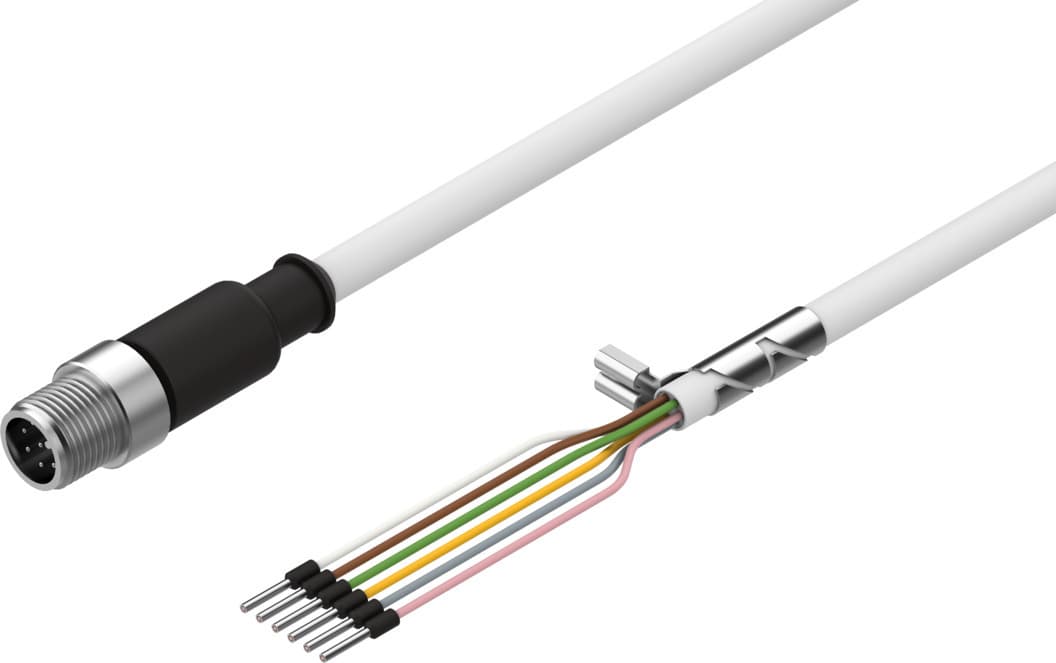

nebm-sm12g8-e- -q5-le6
Product ID:1617
Updated: 2026/4/3
Key Features
- 1Ensure reliable data transmission in demanding industrial environments. 2、Provide superior durability with advanced construction materials. 3、Meet stringent requirements for modern automation systems. 4、Offer extended lifespan to minimize maintenance needs. 5、Deliver seamless communication for manufacturing and logistics.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 6 |
| Electrical connection for input 1, connection pattern | 00992264 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 6 | Electrical connection 2, occupied pins/wires | 6 |
| DC operating voltage range | 0V 72V | Nominal operating voltage DC | 24V |
| Shield | yes | Cable length | 1m 25m |
| Cable characteristic | Suitable for energy chains | Bending radius, flexible cable installation | 62mm |
| Cable diameter | 6.2mm | Cable design | 6 x 0.34 mm2 |
| Nominal conductor cross section | 0.34mm2 | Wire ends | Cable end sleeve |
| Degree of protection | IP65 | Note on degree of protection | In mounted state |
| Ambient temperature | -40°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Manufacturer ID | 1449605 |
Specifications may be subject to change without notice
