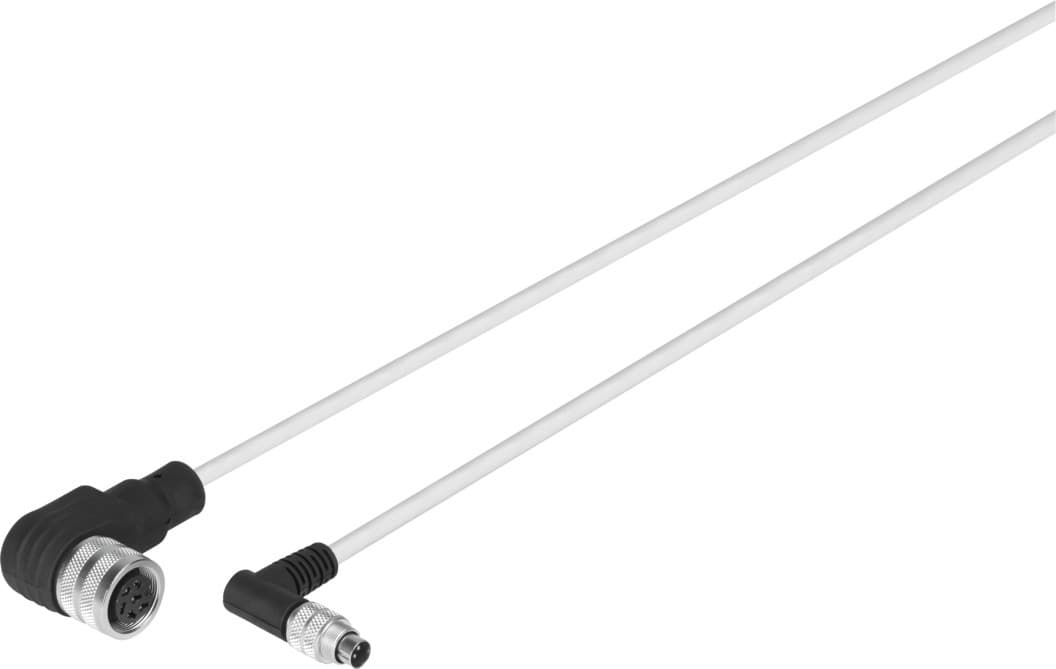

nebp-m16w6-k-2-m9w5
Product ID:14453
Updated: 2026/7/14
Key Features
- 1Ensure secure connections with angled sockets and plugs.
- 2Achieve reliable operation with 0.5 kV surge immunity.
- 3Meet stringent environmental regulations like EU RoHS.
- 4Deliver long-lasting performance with a 2 m length and 5.5 mm diameter.
- 5Suit energy chains and diverse industrial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Additional functions | Product-specific pin allocation | Cable designation | With accessories |
| Product weight | 160g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | M16x0.75 |
| Electrical connection 1, number of pins/wires | 6 | Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00995709 |
| Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Angled |
| Electrical connection 2, connection technology | M9x0.5 | Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 4 | Electrical connection 2, type of mounting | Screw-type lock |
| Electrical connection 2, connection pattern | 00995745 | DC operating voltage range | 0V 30V |
| Current rating at 40° C | 3A | Note on acceptable current load at 40°C | 2.3 A for 0.34 mm2 3.6 A for 0.49 mm2 |
| Surge resistance | 0.5kV | Shield | yes |
| Cable length | 2m | Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request | Bending radius, flexible cable installation | 75mm |
| Cable diameter | 5.5mm | Cable design | 2 x 0.25 mm2 + 2 x 0.34 mm2 + 0.49 mm2 |
| Nominal conductor cross section | 0.34mm2 | Degree of protection | IP65 IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -20°C 70°C |
| Ambient temperature with flexible cable installation | -5°C 70°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 1 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Light gray | Housing material | TPE-U(PUR) |
| Housing colour | Black | Material of screw-type lock | Brass, nickel-plated |
| Material of pin contacts | Bronze, gold-plated Brass, gold-plated | Insulating sheath material | TPE-U(PUR) |
| Manufacturer ID | 575898 |
Specifications may be subject to change without notice
