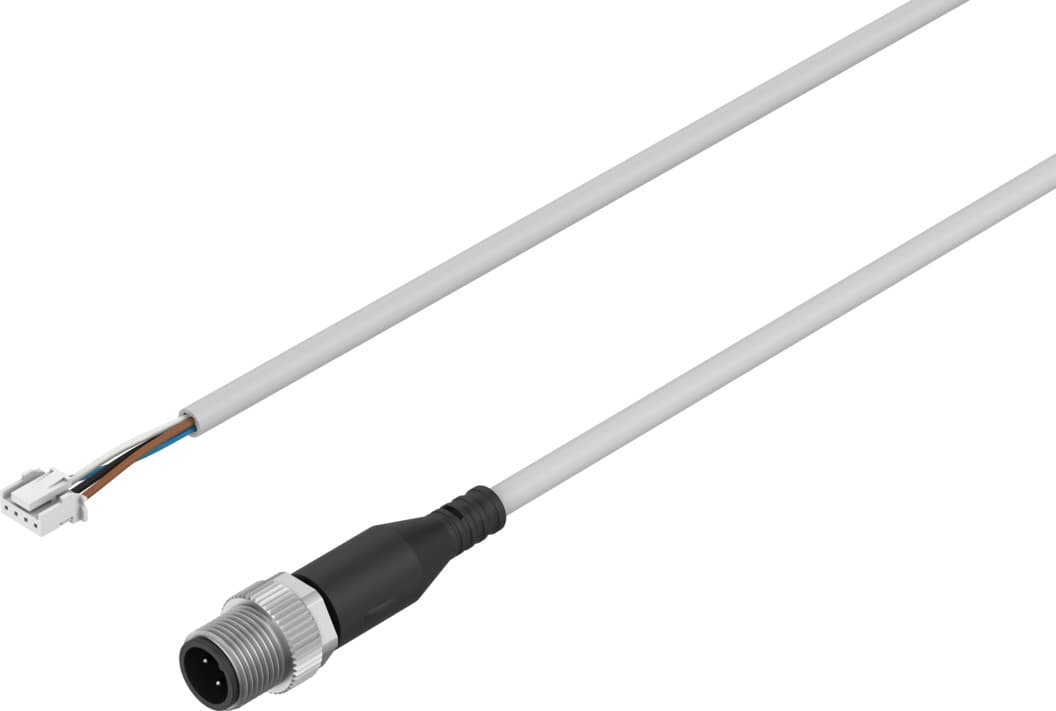

nebs-l1g4-k-1-n-m12g4
Product ID:16567
Updated: 2026/7/19
Key Features
- 1Connect field devices with high durability and precision.
- 2Ensure robust IP65, IP67, and IP69K protection against dust and water.
- 3Install easily using a secure snap-in locking mechanism.
- 4Operate within a 0V to 30V DC range for versatility.
- 5Meet EU and UK RoHS directives with halogen-free materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Contact durability | 100 |
| Product weight | 40g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram L1J |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | Snap-locking | Electrical connection for input 1, connection pattern | 00995720 |
| Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 4 |
| Electrical connection 2, occupied pins/wires | 4 | Electrical connection 2, type of mounting | Screw-type lock with hexagon AF 13 and longitudinal knurl |
| Electrical connection 2, connection pattern | 00995386 | DC operating voltage range | 0V 30V |
| Current rating at 40° C | 1A | Surge resistance | 0.8kV |
| Cable length | 1m | Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 14mm |
| Bending radius, flexible cable installation | 46mm | Cable diameter | 4.5mm |
| Cable diameter tolerance | ± 0.1 mm | Cable design | 4 x 0.25 mm2 |
| Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 IP67 IP69K |
| Note on degree of protection | IP40 for plug connection pattern L1J In mounted state | Ambient temperature | -20°C 60°C |
| Ambient temperature with flexible cable installation | -5°C 60°C | Storage temperature | -20°C 60°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free |
| Contamination level | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | PA TPE-U(PUR) | Housing colour | Black White |
| Material of screw-type lock | Brass, nickel-plated | Material of pin contacts | Tin-plated bronze Brass, gold-plated |
| Insulating sheath material | PP | Manufacturer ID | 8091514 |
Specifications may be subject to change without notice
