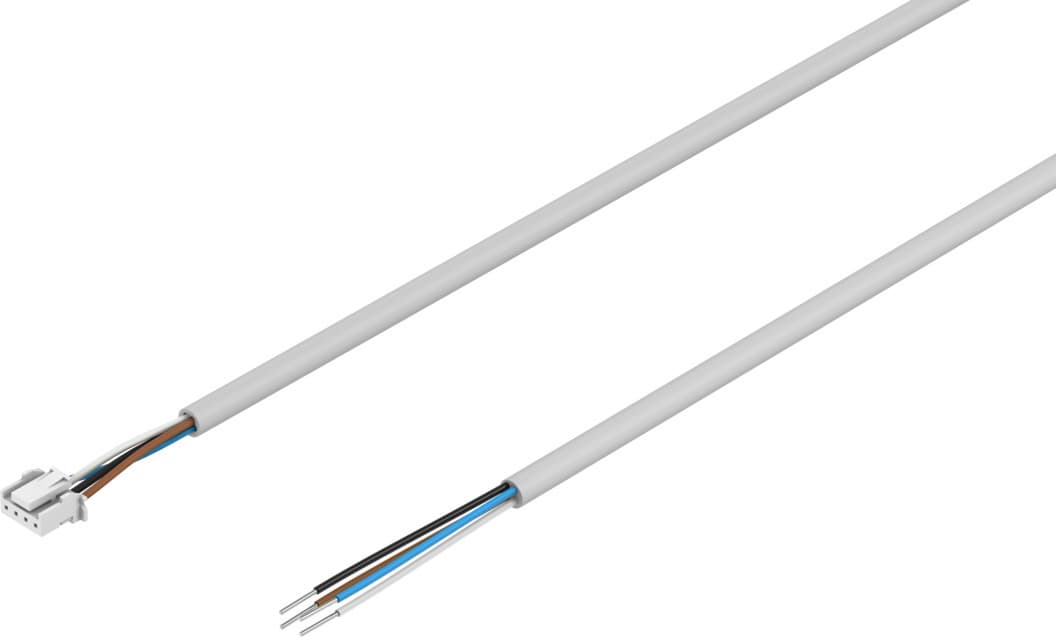

nebs-l1g4-k-5-le4
Product ID:13662
Updated: 2026/4/3
Key Features
- 1Withstand harsh industrial conditions with a robust, durable design. 2、Ensure reliable signal and power transmission for pneumatic control systems. 3、Connect various field devices like sensors and actuators seamlessly. 4、Provide immunity to electrical surges up to 0.8 kV for protection. 5、Meet NEBS and IP40 standards for guaranteed performance and safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | With label holder | Contact durability | 100 |
| Product weight | 106g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram L1J |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | Snap-locking | Electrical connection for input 1, connection pattern | 00995720 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 4 |
| Electrical connection 2, occupied pins/wires | 4 | DC operating voltage range | 0V 30V |
| Current rating at 40° C | 1A | Surge resistance | 0.8kV |
| Cable length | 5m | Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 13mm |
| Bending radius, flexible cable installation | 42mm | Cable diameter | 4.1mm |
| Cable diameter tolerance | ± 0.15 mm | Cable design | 4 x 0.17 mm2 |
| Nominal conductor cross section | 0.17mm2 | Wire ends | Cut off bluntly |
| Degree of protection | IP40 | Note on degree of protection | In mounted state |
| Ambient temperature | -20°C 60°C | Ambient temperature with flexible cable installation | -5°C 60°C |
| Storage temperature | -20°C 60°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant | Contamination level | 2 |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | Material of cable sheath | PVC |
| Color cable sheath | Gray | Housing material | PA |
| Housing colour | White | Material of pin contacts | Tin-plated bronze |
| Insulating sheath material | PVC | Manufacturer ID | 572577 |
Specifications may be subject to change without notice
