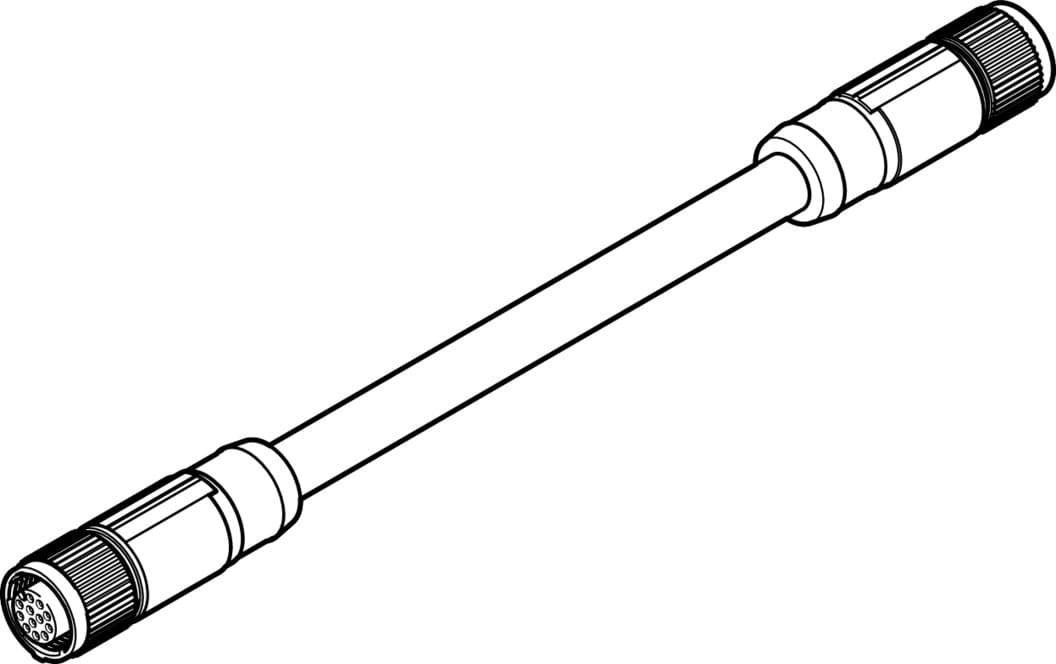

nebs-m12g12-ks-0.5-sm12g12
Product ID:8051
Updated: 2026/4/3
Key Features
- 1Ensure durability with a robust TPE-U(PUR) sheath and zinc union nut. 2、Mount in any position for versatile sensor installation. 3、Protect against harsh conditions with IP67 dust/water resistance. 4、Deliver efficient power with 30V DC and 1.5A rating. 5、Guard against electrical surges with 0.8 kV surge resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | With label holder | Mounting position | Any |
| Product weight | 87g | Electrical connection 1 | Straight socket, M12x1, 12-pin, A-coded |
| Electrical connection 2 | Straight socket, M12x1, 12-pin, A-coded | DC operating voltage range | 0V 30V |
| Nominal operating voltage DC | 30V | Current rating at 40° C | 1.5A |
| Surge resistance | 0.8kV | Shield | yes |
| Cable length | 0.5m | Cable characteristic | Basic |
| Connector cable test conditions | Flexural strength: as per Festo standard | Min. cable bending radius | 85mm |
| Bending radius, fixed cable installation | 42.5mm | Cable diameter | 8.5mm |
| Cable diameter tolerance | ± 0.2 mm | Cable design | 12 x 0.14 mm2 |
| Connection cross section | 0.14mm2 | Wire insulation color code | Pin 1 = brown Pin 10 = violet Pin 11 = gray/pink Pin 12 = red/blue Pin 2 = blue Pin 3 = white Pin 4 = green Pin 5 = pink Pin 6 = yellow Pin 7 = black Pin 8 = gray Pin 9 = red |
| Degree of protection | IP67 | Ambient temperature | -30°C 80°C |
| Ambient temperature with flexible cable installation | -25°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Black | Material of union nut | Die-cast zinc |
| Seals material | NBR | Material of pin contacts | Brass Nickel-plated and gold-plated |
| Manufacturer ID | 3056124 |
Specifications may be subject to change without notice
