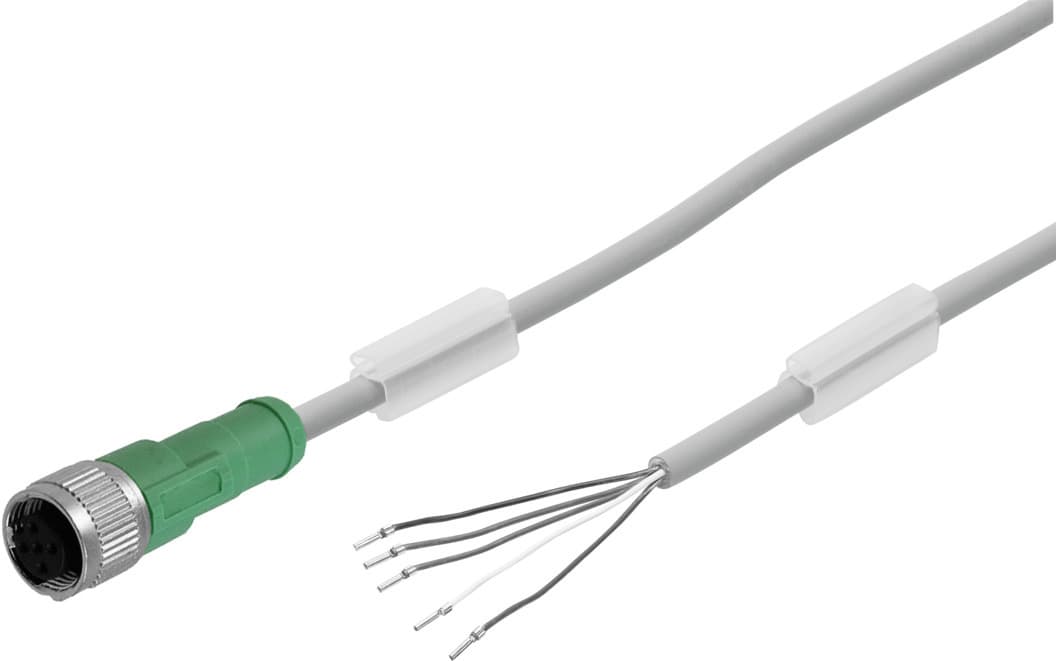

nebs-m12g5-es-15-le5
Product ID:16681
Updated: 2026/4/3
Key Features
- 1Ensure signal integrity with a fully shielded 5-pin M12 design. 2、Deploy in harsh conditions thanks to IP65/IP67 protection. 3、Connect field devices over 15 meters for flexible layouts. 4、Meet compliance standards including EU RoHS and UKCA. 5、Reduce downtime with a durable cable rated for energy chains.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | With 2x label holders | Product weight | 828g |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, occupied pins/wires | 5 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00995384 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 5 | Electrical connection 2, occupied pins/wires | 5 |
| DC operating voltage range | 0V 60V | Operating voltage range AC | 0V 48V |
| Current rating at 40° C | 4A | Surge resistance | 1.5kV |
| Shield | yes | Cable length | 15m |
| Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | 26mm | Bending radius, flexible cable installation | 52mm |
| Cable diameter | 5.25mm | Cable diameter tolerance | ± 0.2 mm |
| Cable design | 5 x 0.34 mm2 | Nominal conductor cross section | 0.34mm2 |
| Wire ends | Cut off bluntly | Degree of protection | IP65 IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -40°C 80°C |
| Ambient temperature with flexible cable installation | -25°C 60°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Black |
| Seals material | NBR | Material of pin contacts | Bronze, nickel-plated and gold-plated |
| Insulating sheath material | PP | Manufacturer ID | 8097576 |
Specifications may be subject to change without notice
