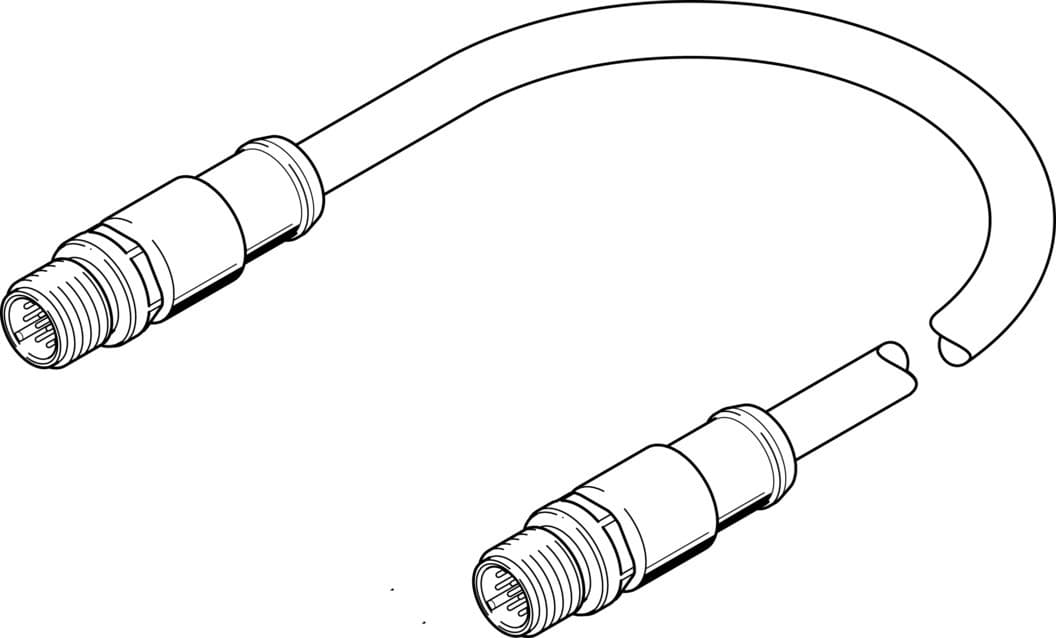

nebs-sm12g12-e-0.3-n-m12g12
Product ID:8481
Updated: 2026/4/3
Key Features
- 1Ensure reliable connections with a pre-assembled 12-core M12 A-coded design. 2、Withstand harsh environments using a TPE-U(PUR) sheath and IP67 rating. 3、Prevent electrical failures with 0.5 kV surge resistance and 0-30V operating range. 4、Achieve flexible installation via a 6.5mm diameter and ≥32mm bending radius. 5、Guarantee compliance and durability with RoHS and nickel-plated brass contacts.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 61076-2-101 | Cable designation | With accessories |
| Contact durability | 100 | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 12 | Electrical connection 1, occupied pins/wires | 12 |
| Electrical connection 1, type of mounting | Screw-type lock with hexagon, AF 13 | Electrical connection for input 1, connection pattern | 00995669 |
| Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 12 |
| Electrical connection 2, occupied pins/wires | 12 | Electrical connection 2, type of mounting | Screw-type lock with hexagon, AF 13 |
| Electrical connection 2, connection pattern | 00995669 | DC operating voltage range | 0V 30V |
| Operating voltage range AC | 0V 30V | Current rating at 40° C | 1.5A |
| Surge resistance | 0.5kV | Cable length | 0.3m |
| Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | 32mm | Bending radius, flexible cable installation | 65mm |
| Cable diameter | 6.5mm | Cable design | 12 x 0.25 mm2 |
| Nominal conductor cross section | 0.25mm2 | Degree of protection | IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -5°C 70°C |
| Ambient temperature with flexible cable installation | -5°C 70°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Black | Housing material | TPE-U(PUR) |
| Housing colour | Black | Material of screw-type lock | Die-cast zinc, nickel-plated |
| Material of pin contacts | Brass, gold-plated | Manufacturer ID | 3947404 |
