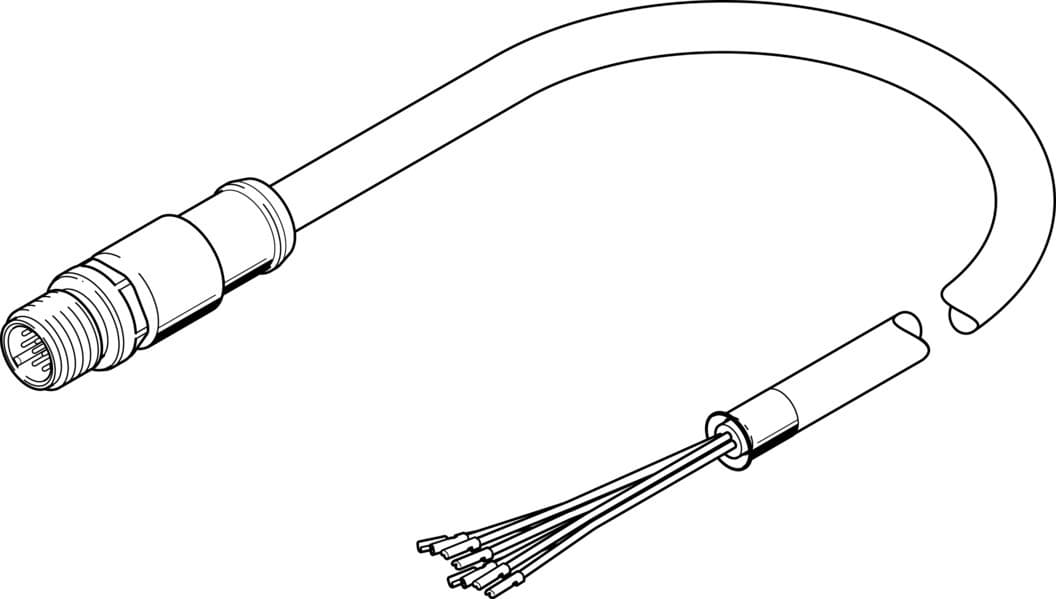

nebs-sm12g12-e-0.5-n-le12
Product ID:8480
Updated: 2026/4/3
Key Features
- 1Meet EN 61076-2-101 for reliable sensor connections. 2、Use 0.5m length for short energy chain runs. 3、Transmit signals via 12 cores with 0.25 mm² cross-section. 4、Resist corrosion with TPE-U(PUR) sheath and housing. 5、Achieve IP67 protection against dust and water.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 61076-2-101 | Cable designation | With accessories |
| Contact durability | 100 | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 12 | Electrical connection 1, occupied pins/wires | 12 |
| Electrical connection 1, type of mounting | Screw-type lock with hexagon, AF 13 | Electrical connection for input 1, connection pattern | 00995669 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 12 |
| Electrical connection 2, occupied pins/wires | 12 | DC operating voltage range | 0V 30V |
| Operating voltage range AC | 0V 30V | Current rating at 40° C | 1.5A |
| Surge resistance | 0.5kV | Cable length | 0.5m |
| Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | 32mm | Bending radius, flexible cable installation | 65mm |
| Cable diameter | 6.5mm | Cable design | 12 x 0.25 mm2 |
| Nominal conductor cross section | 0.25mm2 | Wire ends | Cut off bluntly |
| Degree of protection | IP67 | Note on degree of protection | In mounted state |
| Ambient temperature | -5°C 70°C | Ambient temperature with flexible cable installation | -5°C 70°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Black |
| Housing material | TPE-U(PUR) | Housing colour | Black |
| Material of screw-type lock | Die-cast zinc, nickel-plated | Material of pin contacts | Brass, gold-plated |
| Manufacturer ID | 3947401 |
Specifications may be subject to change without notice
