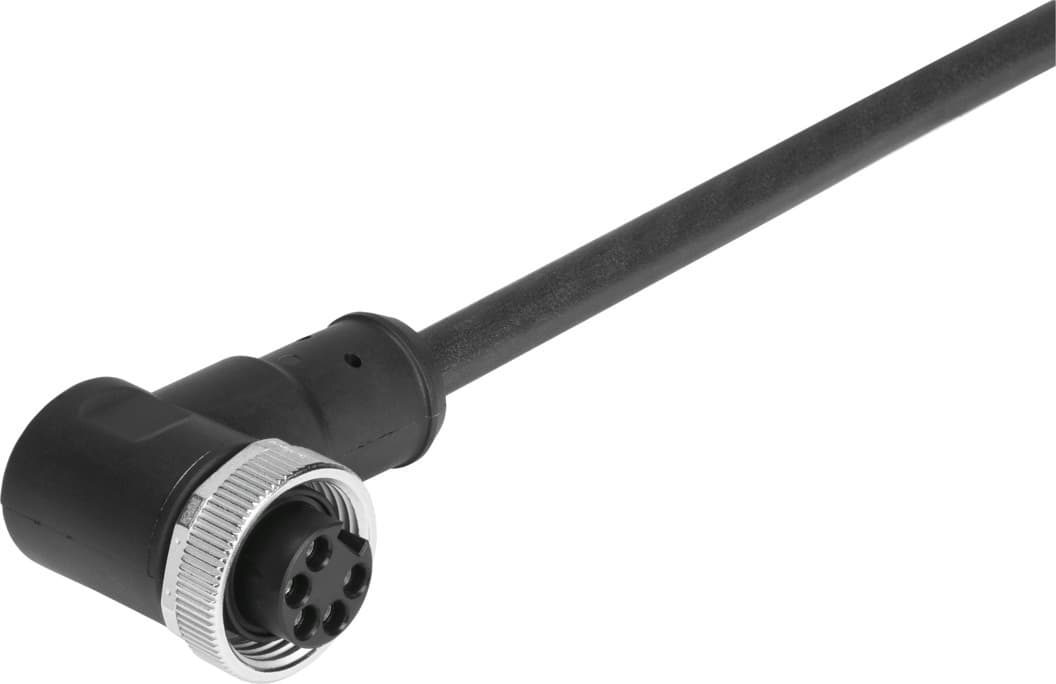

nebu-g78w5-k-2-n-le5
Product ID:13896
Updated: 2026/4/3
Key Features
- 1Withstand 4 kV surge strength for reliable performance under electrical stress. 2、Ensure IP65/IP67 protection against dust and water in harsh environments. 3、Operate within 0-300V AC/DC for versatile industrial applications. 4、Utilize modular design for unlimited combination options of sockets and cables. 5、Feature TPE-U(PUR) sheath and brass lock for high corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | NFPA/T3.5.29 R1-2007 | Cable designation | Without label holder |
| Contact durability | 100 | Product weight | 680g |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, information on cable outlet | Cable outlet not according to industry standard. Matched to CPX safety guard. | Electrical connection 1, connection technology | G7/8 coded as per NFPA/T3.5.29 R1-2007 |
| Electrical connection 1, number of pins/wires | 5 | Electrical connection 1, occupied pins/wires | 5 |
| Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00995652 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 5 | DC operating voltage range | 0V 300V |
| Operating voltage range AC | 0V 300V | Current rating at 40° C | 9A |
| Surge resistance | 4kV | Cable length | 2m |
| Cable characteristic | Standard | Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | 65mm | Cable diameter | 8.7mm |
| Cable diameter tolerance | ± 0.2 mm | Cable design | 5 x 1.5 mm2 |
| Nominal conductor cross section | 1.5mm2 | Degree of protection | IP65 IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -20°C 80°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Black |
| Housing material | TPE-U(PUR) | Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated | Material of pin contacts | Brass, gold-plated |
| Manufacturer ID | 573855 |
Specifications may be subject to change without notice
