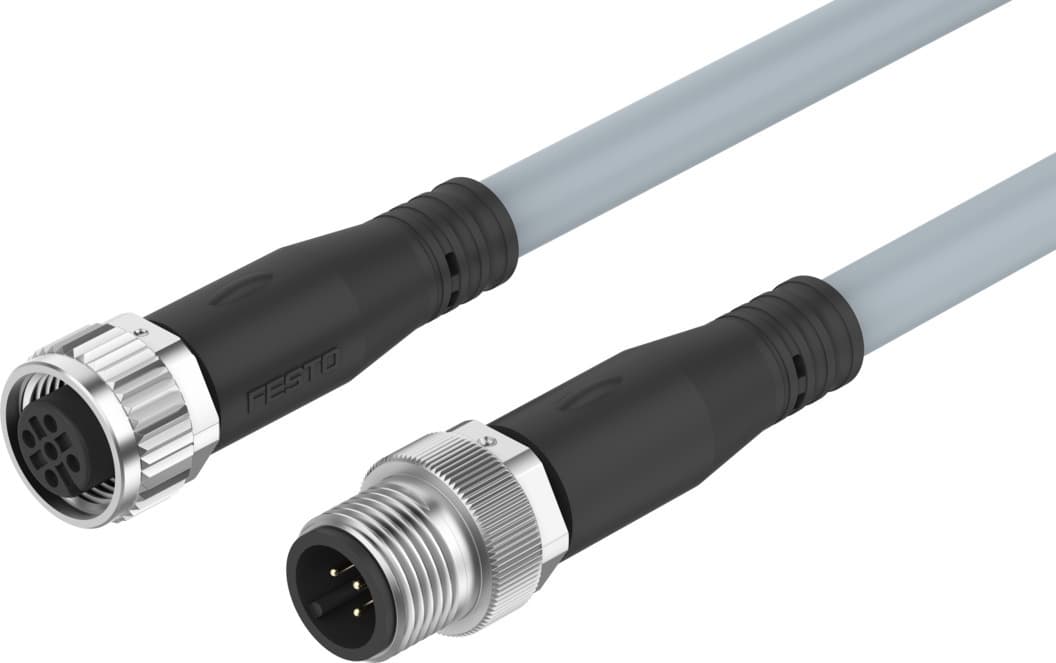

nebu-m12g5-e-10-q8n-m12g5
Product ID:14058
Updated: 2026/4/3
Key Features
- 1Ensure safe operation in ATEX Zone 2/22 hazardous environments. 2、Withstand exposure to oils and industrial chemicals reliably. 3、Deploy in demanding energy chains and cable carriers. 4、Achieve reliable connections with 1.5 kV surge voltage strength. 5、Benefit from durable IP65/68/69K protection and 5x1mm² conductors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 61076-2-101 | Explosion prevention and protection | Observe the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX) |
| Cable designation | Without label holder | Product weight | 835g |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, occupied pins/wires | 5 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00995384 | Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round | Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 5 | Electrical connection 2, occupied pins/wires | 5 |
| Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00995383 |
| DC operating voltage range | 0V 60V | Operating voltage range AC | 0V 60V |
| Current rating at 40° C | 4A | Surge resistance | 1.5kV |
| Cable length | 10m | Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Energy chain > 5 million cycles, bending radius 75 mm | Bending radius, fixed cable installation | 21mm |
| Bending radius, flexible cable installation | 71mm | Cable diameter | 7mm |
| Cable diameter tolerance | ± 0.1 mm | Cable design | 5 x 1 mm2 |
| Nominal conductor cross section | 1mm2 | Degree of protection | IP65 IP68 IP69K |
| Note on degree of protection | In mounted state | Special features | Oil-resistant |
| Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | TPE-U(PUR) | Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated | Seals material | NBR |
| Material of pin contacts | Copper alloy, gold-plated | Insulating sheath material | PP |
| Manufacturer ID | 574323 |
Specifications may be subject to change without notice
