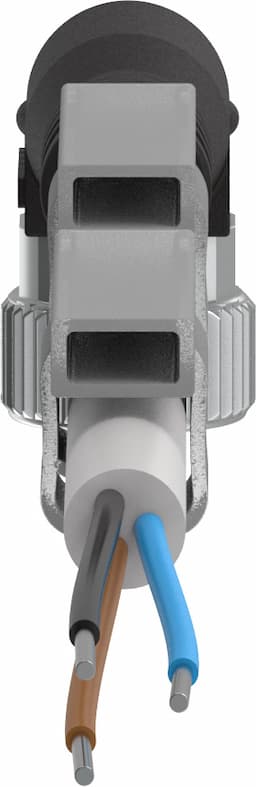

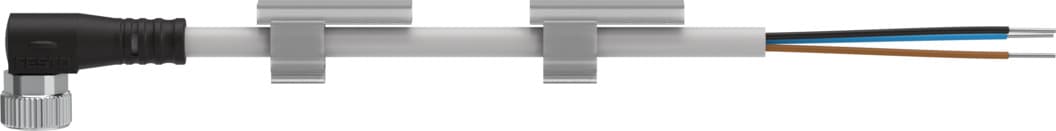

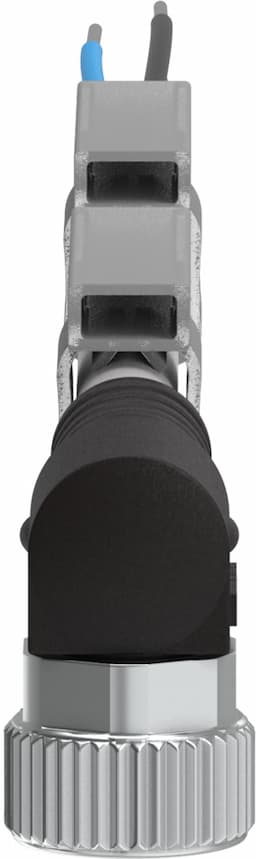

nebu-m8w3p-k-5-le3
Product ID:10671
Updated: 2026/4/3
Key Features
- 1Meet EN 60947-5-2 and EN 61076-2-104 standards for reliability. 2、Operate at 10-30V DC and up to 3A for versatile use. 3、Withstand harsh conditions with 0.8kV surge and IP65/68/69K. 4、Feature 3x0.25 mm² conductors and a 5-meter length. 5、Use RoHS-compliant, halogen-free TPE-U(PUR) materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-104 | Ready status indication | LED green |
| Switching status indication | LED yellow For PNP N/O contact | Cable designation | With 2x label holders |
| Product weight | 123g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, occupied pins/wires | 3 |
| Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00991871 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 3 |
| Electrical connection 2, occupied pins/wires | 3 | DC operating voltage range | 10V 30V |
| Current rating at 40° C | 3A | Surge resistance | 0.8kV |
| Cable length | 5m | Cable characteristic | Standard |
| Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Energy chain > 5 million cycles, bending radius 75 mm | Bending radius, fixed cable installation | 12mm |
| Bending radius, flexible cable installation | 39mm | Cable diameter | 3.8mm |
| Cable diameter tolerance | ± 0.1 mm | Cable design | 3 x 0.25 mm2 |
| Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 IP68 IP69K |
| Note on degree of protection | In mounted state | Special features | Oil-resistant |
| Ambient temperature | -25°C 70°C | Ambient temperature with flexible cable installation | -5°C 70°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | TPE-U(PUR) | Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated | Seals material | NBR |
| Material of pin contacts | Copper alloy, gold-plated | Insulating sheath material | PP |
| Manufacturer ID | 541340 |
Specifications may be subject to change without notice
